| Screw for sliding-roof panel, rear |
Item 1 |
Tightening torque |
8 Nm (6 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear screw |
|
|
|
|
| Screws for sliding-roof panel, center and front |
Item 1 |
Tightening torque |
8 Nm (6 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

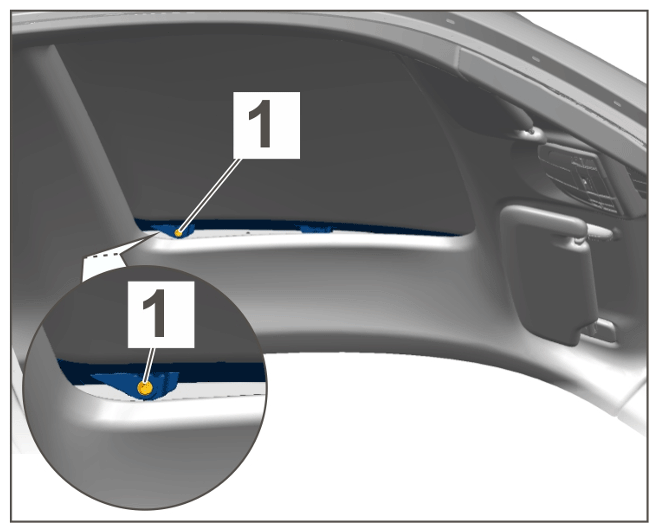

Centre and front screw |
|
|
|
|
