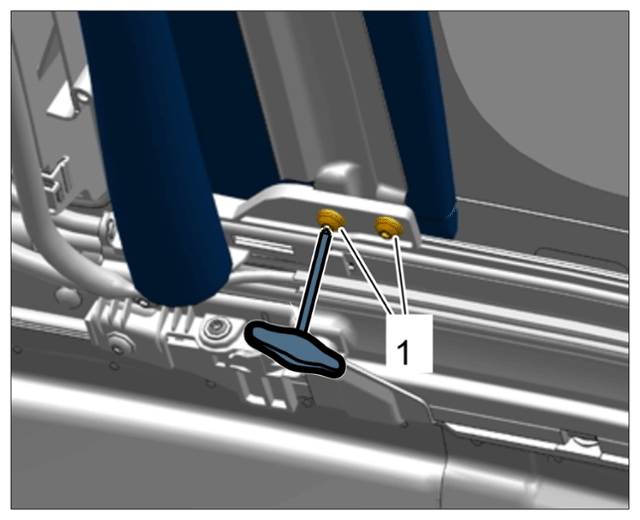

| Screws for transverse bow |
Item 1 |
Tightening torque |
2.5 Nm (1.75 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Transverse bow mounting |
|
|
|
|

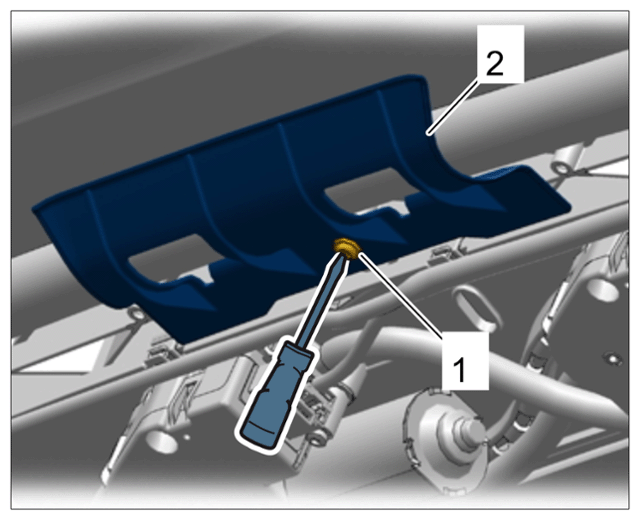

| Screw for sun blind well |
Item 1 |
Tightening torque |
3 Nm (2 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Sun blind well |
|
|
|
|
