Powered Sunroof Mechanism

Location	Description	Type	Posit value
Screw for outer front powered sunroof mechanism	Item 1	Tightening torque	3 Nm (2 ftlb.)

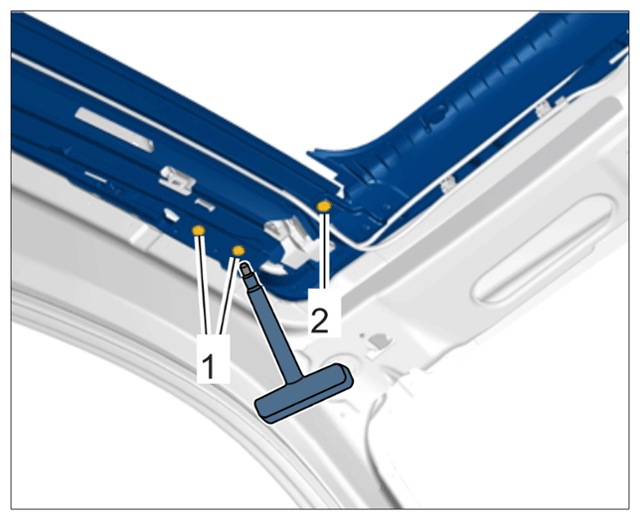

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front powered sunroof mechanism
Screw for inner front powered sunroof mechanism	Item 2	Tightening torque	3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front powered sunroof mechanism
Screw for rear powered sunroof mechanism	Item 1	Tightening torque	3 Nm (2 ftlb.)

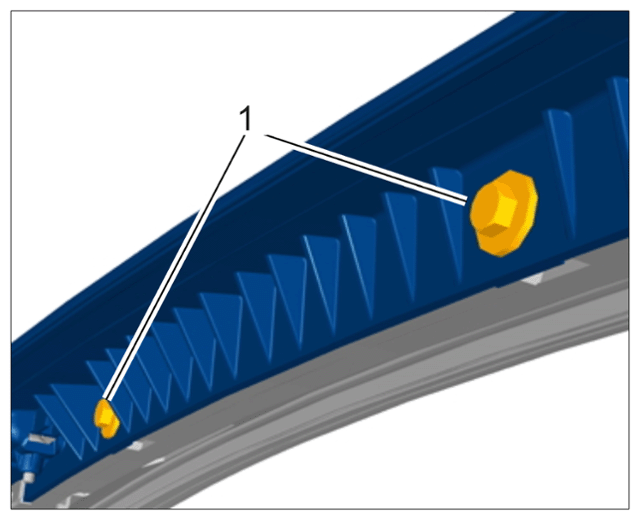

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear powered sunroof mechanism
Screw securing retaining bracket to guide tube	Item 2	Tightening torque	3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear powered sunroof mechanism
Screw securing powered sunroof mechanism to assembly frame	Item 1	Tightening torque	3 Nm (2 ftlb.)

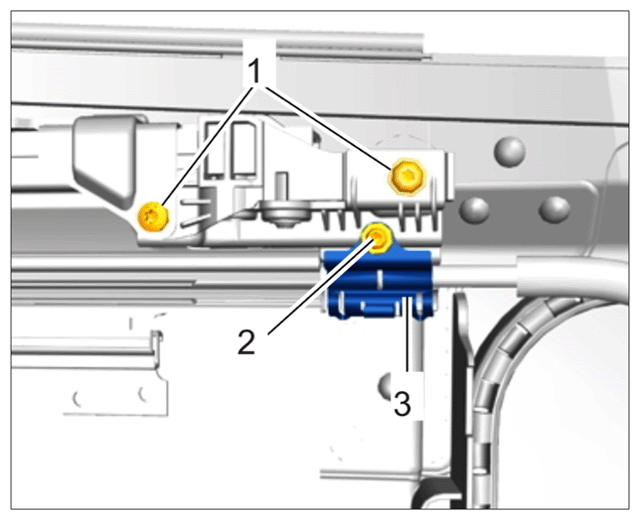

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Assembly frame mounting
