Tools And Materials

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

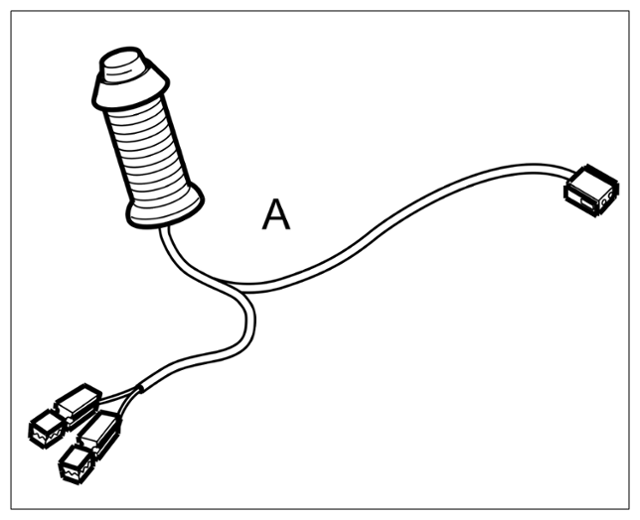

Overview of ignition device 92570

A	Ignition device 9257

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

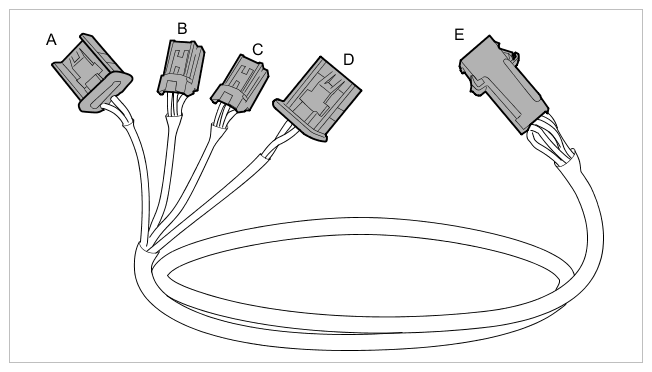

Overview of adapter cable 9257/4

A	Purple marking on the connector - adapter for knee airbag
B	Marking A - adapter for 1st stage of driver's airbag unit
C	Marking B - adapter for 2nd stage of driver's airbag unit
D	Green marking on the connector - adapter not required
E	Adapter for detonator (ignition device)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

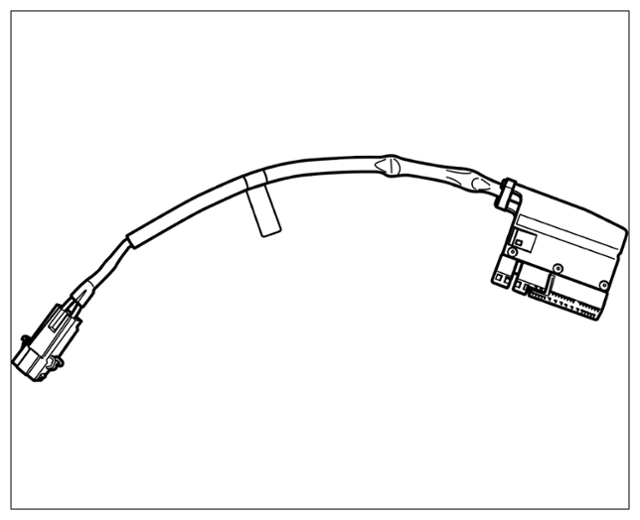

Overview of adapter cable 9257/7

A	Purple marking on the connector - adapter for ignition module of front lid
B	Blue marking - adapter for 1st stage of driver's airbag unit
C	Black marking on the connector - adapter for head airbag
D	Turquoise marking on the connector - adapter for 1st stage of passenger's airbag unit
E	Yellow marking on the connector - adapter for 2nd stage of passenger's airbag unit and seat-belt pretensioner
F	Adapter for detonator (ignition device)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

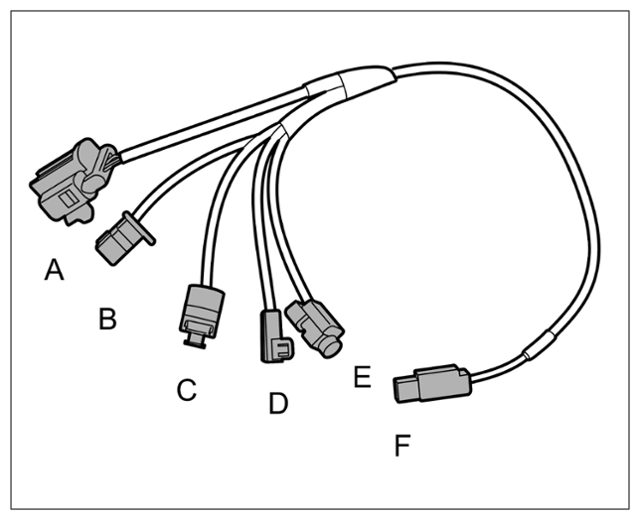

Overview of adapter cable 9257/6

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

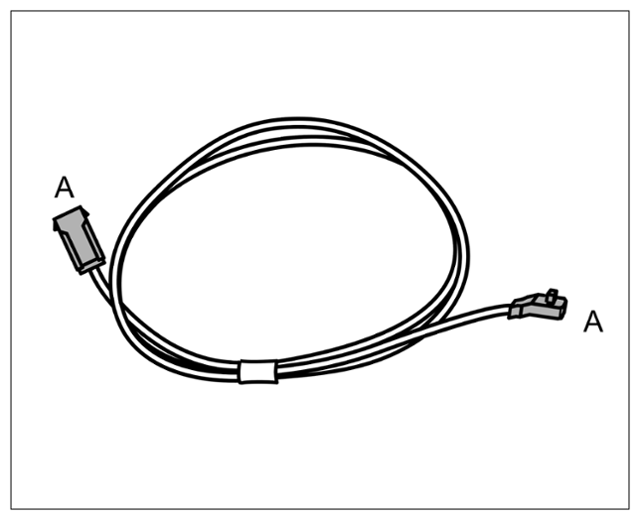

Overview of adapter cable 9257/1

A	Black connector - adapter for cutoff relay at power distributor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of ignition device 92570

LHD vehicle Ignition device 9257

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of adapter cable 9257/4

LHD vehicle	Purple marking on the connector - adapter for knee airbag
RHD vehicle	Marking A - adapter for 1st stage of driver's airbag unit
Item C	Marking B - adapter for 2nd stage of driver's airbag unit
D	Green marking on the connector - adapter not required
E	Adapter for ignition device

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of adapter cable 9257/7

LHD vehicle	Purple marking on the connector - adapter for ignition module of front lid
RHD vehicle	Blue marking - adapter for 1st stage of driver's airbag unit
Item C	Black marking on the connector - adapter for head airbag
D	Turquoise marking on the connector - adapter for 1st stage of passenger's airbag unit
E	Yellow marking on the connector - adapter for 2nd stage of passenger's airbag unit and seat-belt tensioner
F	Adapter for ignition device

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of ignition cable 9257/6

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of adapter cable 9257/1

LHD vehicle Black connector - adapter for cutoff relay at power distributor
