Charge Air Guide

Overview of components in wheel housing

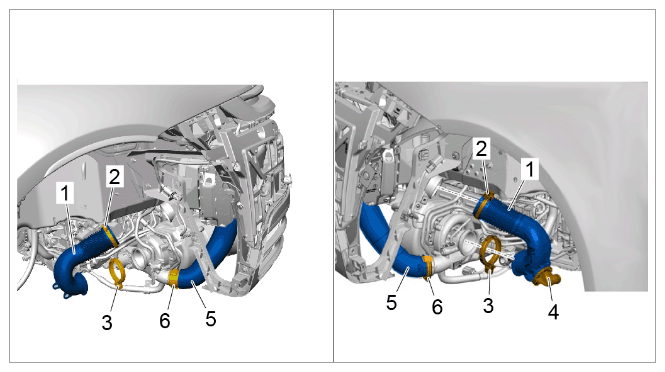

Fig 1: Charge Air Guide Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Charge air guide

1	Intake pipe
2	Screw-type clamp securing intake pipe to air cleaner housing > Tightening torque 2.5 Nm (1.75 ftlb.) + 0.5 Nm (0.3 ftlb.)
3	Clamp securing intake pipe to turbocharger - replace > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.2 Nm (0.1 ftlb.)
4	Positive crankcase ventilation connection (right side only)
5	Molded hose (pressure side)
6	Screw-type clamp securing molded hose to turbocharger > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.2 Nm (0.1 ftlb.)

Overview of components in engine compartment

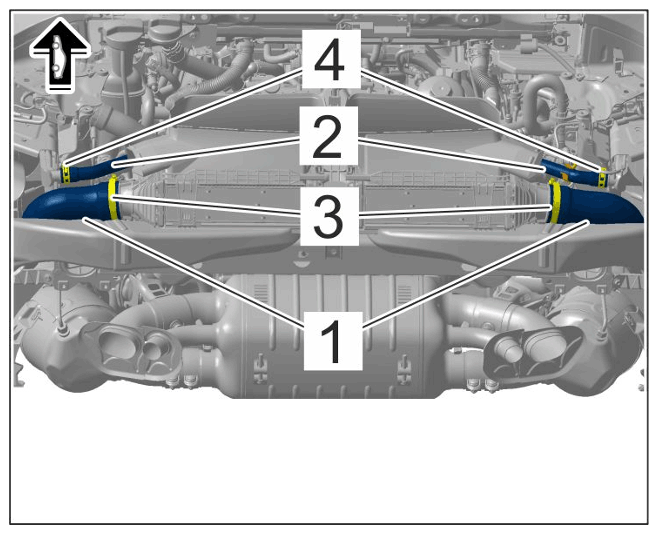

Fig 2: Pressure Hose And Recirculating Air Line Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure hose and recirculating air line

1	Pressure hose - use Kluberplus Gel for assembly
2	Wastegate hose
3	Screw-type clamp > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.3 ftlb.)
4	Spring band clamp

Location	Description	Type	Basic value	Tolerance
Screws securing side pressure pipe to air cleaner housing	Item 3	Tightening torque	2.2 Nm (1.6 ftlb.)

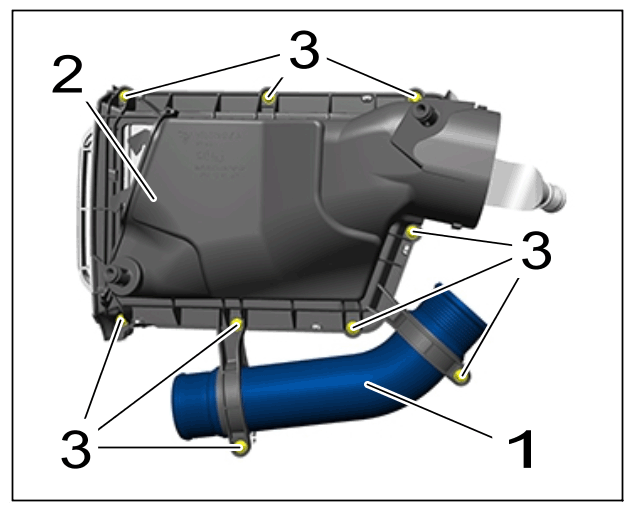

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Pressure pipe (at the side)
