Raw-Air Intake

Location	Description	Type	Basic value
Screws securing air guide to rear side section	Item 2	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on air guide
Screws securing air guide to outer wheel housing	Item 2 to 5	Tightening torque	7 Nm (5 ftlb.)

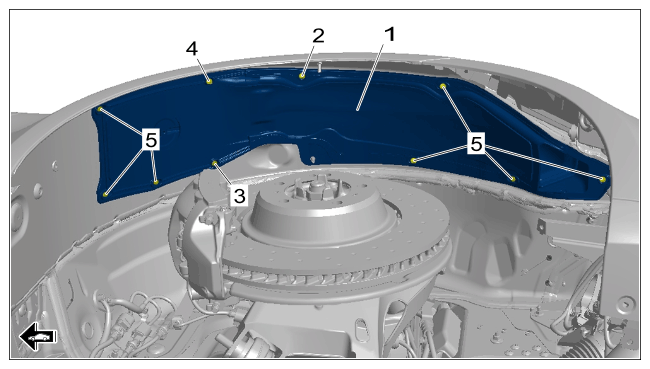

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Air guide
Screw securing raw-air intake to air cleaner housing	Item 2	Tightening torque	6 Nm (4.5 ftlb.)

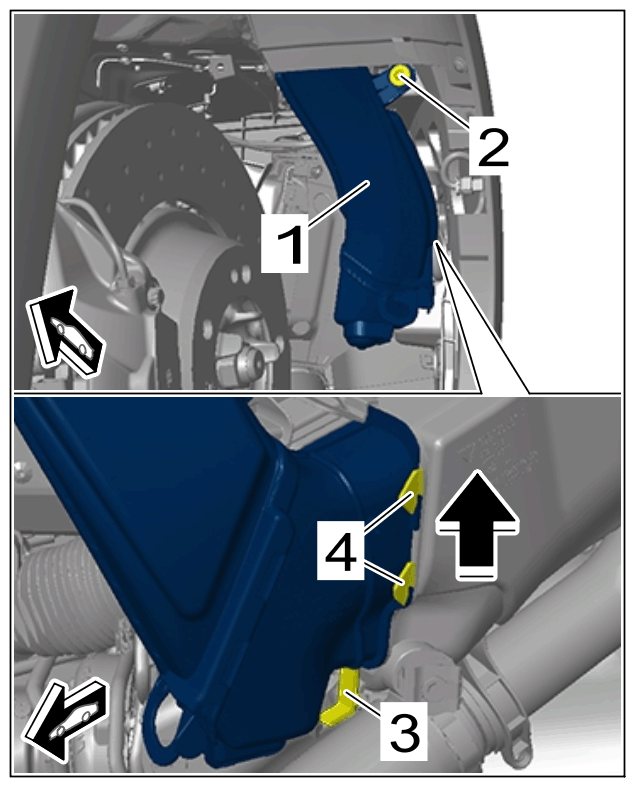

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Raw-air intake
