Oxygen Sensor Cooling Element

Location Description Type Basic value Tolerance
Screw securing funnel for oxygen sensor cooling to air guide for charge-air cooler Item 2 Tightening torque 2.2 Nm (1.6 ftlb.)

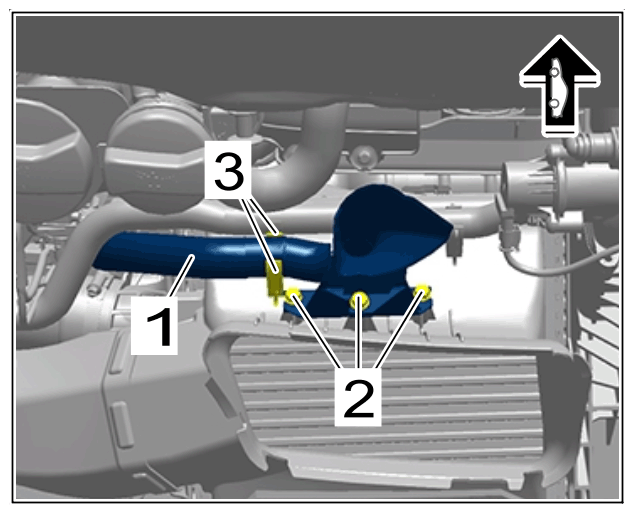

G15505769Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oxygen sensor cooling hose
