Removing Brake Booster

Information

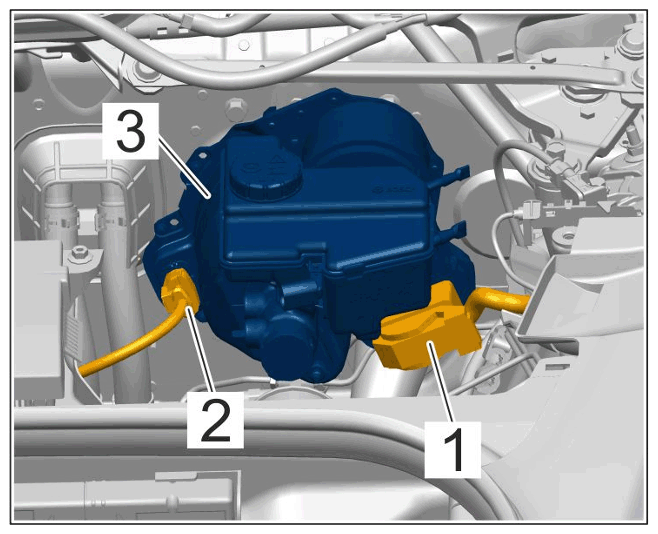

The brake booster -1-  is removed together with the brake master cylinder -2-  and brake fluid reservoir -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

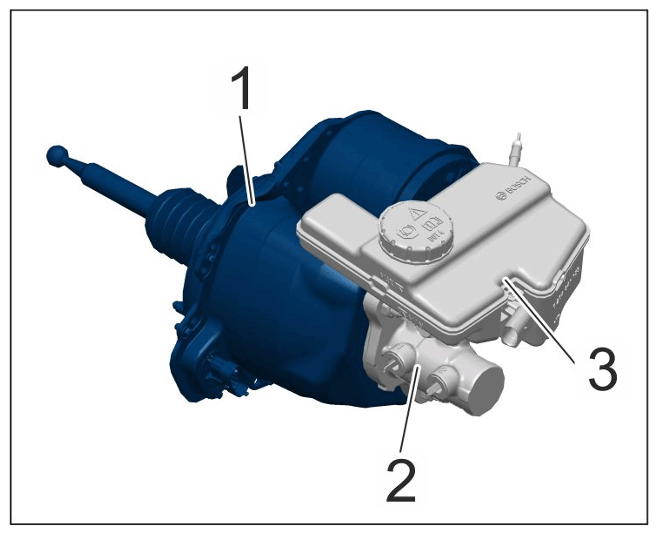

Removing brake booster with brake master cylinder and brake fluid reservoir

Information

When carrying out work during which fluids can escape, leave electric plug connections to be disconnected locked and connected for as long as possible. This prevents fluid from getting onto electric contacts and causing corrosion.

Information

Any escaping brake fluid must be removed immediately. Rinse contacts with water and dry them if necessary.

1. Place a cloth under the brake booster to soak up emerging brake fluid.
2. Extract the brake fluid from the brake fluid reservoir (e.g. with > VAS 6860 - brake filling and bleeding equipment)  .
   1. 2.1  Unscrew cap on the brake fluid reservoir and remove strainer.
3. On vehicles with manual transmission:  Disconnect vent line -2-  and return line -3-  from the brake fluid reservoir -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

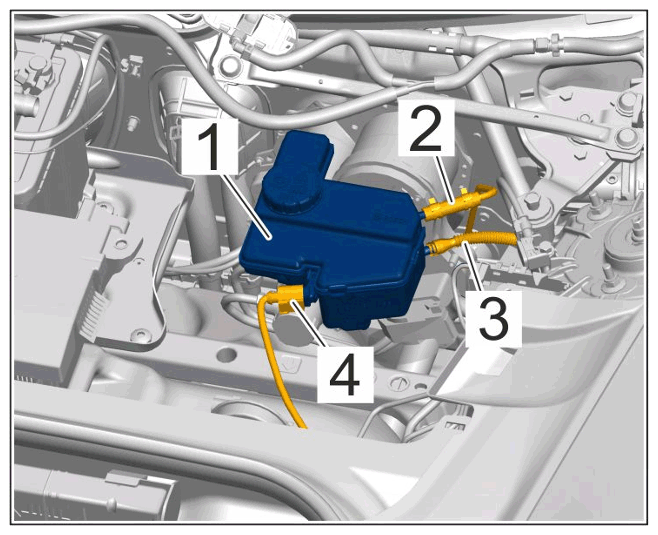

   Lines on brake fluid reservoir

   1. 3.1  Close off vent line, return line and connection openings on the brake fluid reservoir using stoppers.
4. Remove brake lines -1-  from the brake master cylinder -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

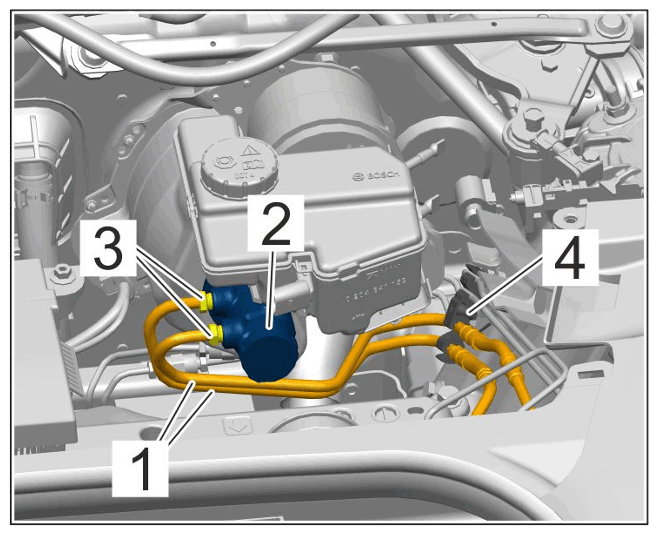

   Brake lines on brake master cylinder

   1. 4.1  Unscrew cap screws -3-  and loosen brake lines from the bracket -4-  .
   2. 4.2  Close off brake lines and connection openings on the brake master cylinder using stoppers.
5. Release and disconnect electric plug connection -4-  for brake fluid reservoir -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Lines on brake fluid reservoir

6. Release and disconnect electric plug connections -1 and 2-  from brake booster -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections on brake booster

7. Disengage push rod -1-  from brake booster at the brake pedal.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

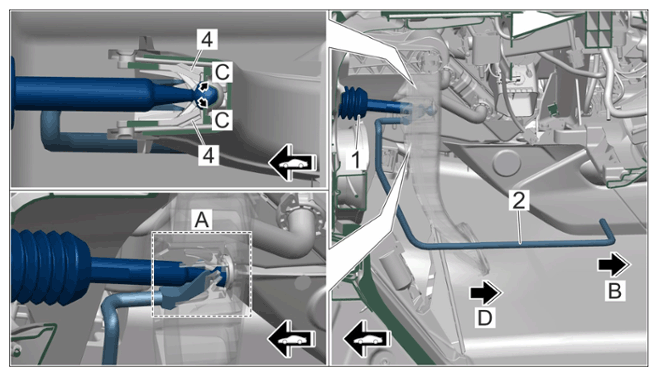

   Disengaging push rod from brake booster at the brake pedal

   1. 7.1  Guide > 9897 - release tool-2-  into mounting for push rod ball joint -Cut-out A-  .
   2. 7.2  Pull > 9897 - release tool-2-  to the rear at the grab handle -arrow B-  (retaining lugs -4-  open -arrows C-  )

      while pulling the brake pedal strongly to the rear -arrow D-  .

8. Detach brake booster -1-  from mounting saddle -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

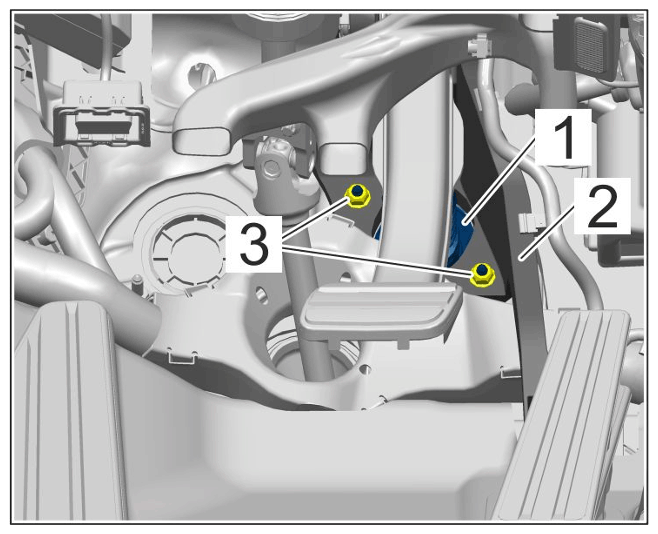

   Mounting for brake booster on mounting saddle

   1. 8.1  Unscrew nuts -3-  .
   2. 8.2  Replace nuts.

      Information

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

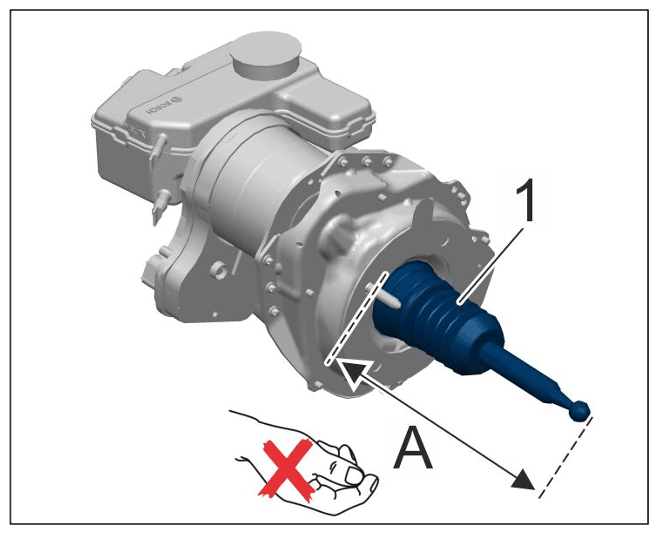

      Brake booster

      • The brake booster must not be lifted in area -A-  .
      • Make sure not to damage the push rod boot -1- when removing and installing the brake booster.
9. Carefully guide brake booster -1-  out of the plenum panel wall -arrow A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

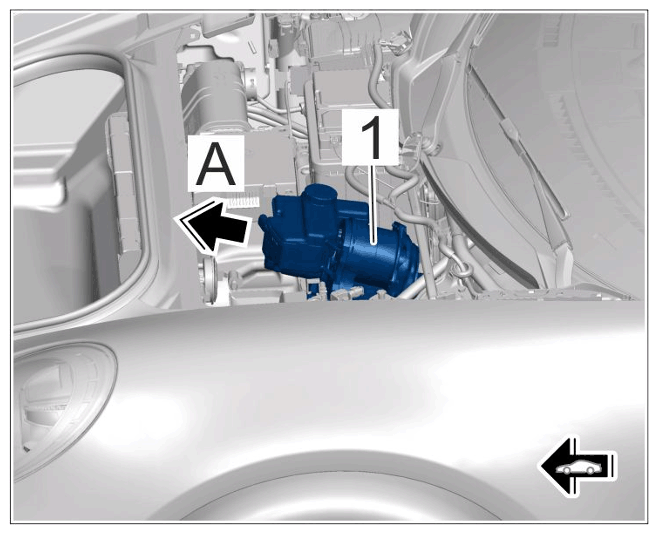

   Brake booster
