Removing Rear Brake CALLIPER
WARNING: This page is about a different variant/trim than selected.
WARNING:
Danger of injury and damage from brake fluid!
- Poisonous if swallowed!
- Irritation and damage to skin
- Avoid contact with paint surfaces
→ Store brake fluid in suitable, labelled containers only
→ Wear protective gloves and goggles
→ In the event of contact (eyes or skin), wash immediately with water
→ In the event of contact with paint surfaces, wash off immediately with water - do not wipe off
NOTE:
Removal of brake calliper
- Paint defects on brake calliper
→ Proceed with care when setting back the brake pads.
→ Protect the paintwork on the brake calliper from damage using a suitable cloth.

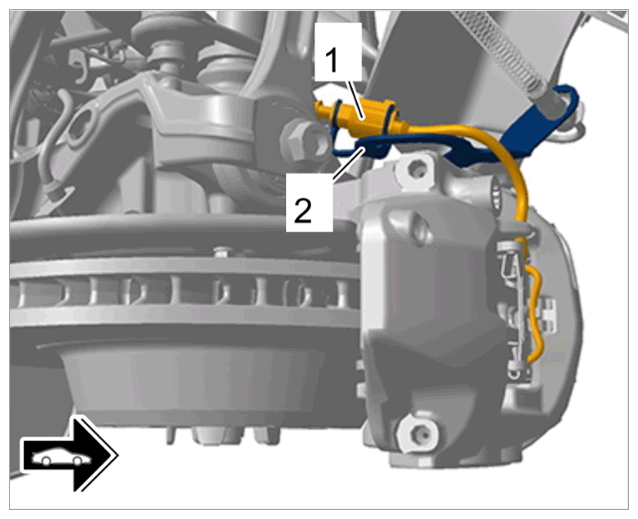

- Unclip electric plug connection for brake pad wear indicator -1-
from the holder -2-
and release and disconnect it.
Electric plug connection for brake pad wear indicator

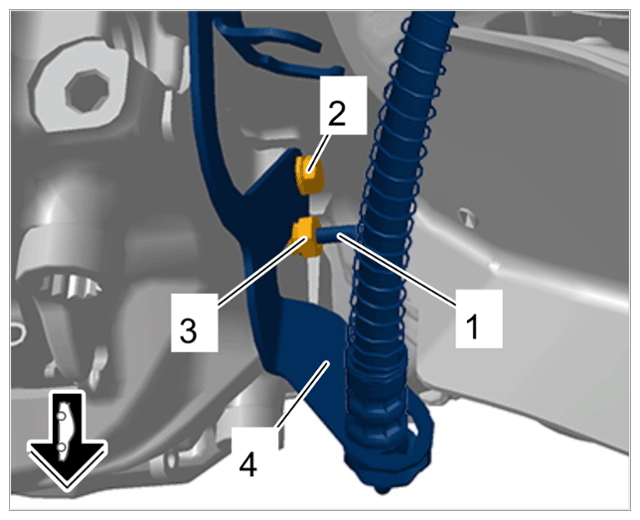

- Disconnect the brake line -1-
from the brake calliper.
- 2.1 Unscrew screw securing holder to brake calliper -2- .
- 2.2 Unscrew union nut on brake line -3- .
- 2.3 Pull the brake line -1- out of the brake calliper.
- 2.4 Collect emerging brake fluid using suitable aids and close off connections using suitable stoppers.
- 2.5
Remove holder -4-
and set the brake line -1-
aside.
Brake line on brake calliper
Information
If necessary, remove a little brake fluid from the reservoir by suction in order to prevent an overflow when the disc brake pads are pushed back.

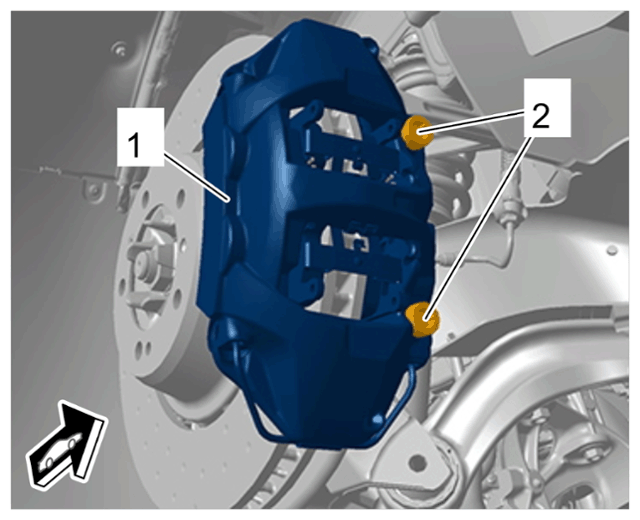

- Remove brake calliper -1- .
