Installing Rear Brake CALLIPER

WARNING: This page is about a different variant/trim than selected.
WARNING: Danger of injury and damage from brake fluid!
  • Poisonous if swallowed!
  • Irritation and damage to skin
  • Avoid contact with paint surfaces

    → Store brake fluid in suitable, labelled containers only

    → Wear protective gloves and goggles

    → In the event of contact (eyes or skin), wash immediately with water

    → In the event of contact with paint surfaces, wash off immediately with water - do not wipe off

  1. Install brake calliper -1-  .
    1. 1.1  Fit brake calliper -1-  .
    2. 1.2  Screw in and tighten brake calliper screws -2-  .

      Standard brakes:

      > Initial tightening 30 Nm (22.1 ftlb.)

      > Final tightening + 75°

      "S" brakes:

      > Initial tightening 30 Nm (22.1 ftlb.)

      > Final tightening + 75°

      PSCB/PCCB brakes:

      > Initial tightening 30 Nm (22.1 ftlb.)

      > Final tightening + 75°

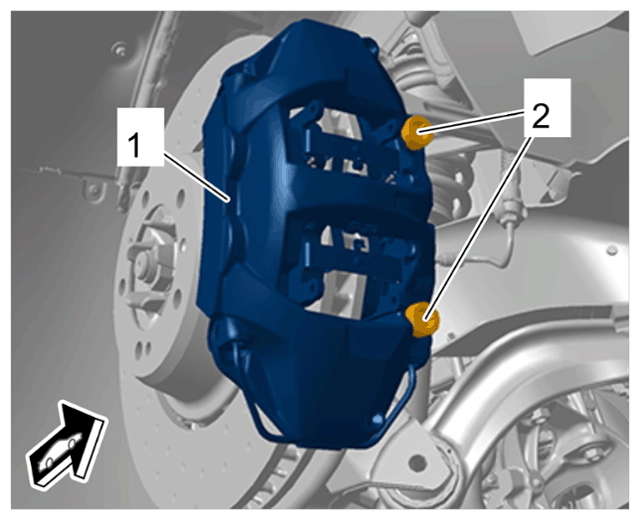

      G15526574Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Rear brake calliper

  2. Secure the brake line -1-  to the brake calliper.
    1. 2.1  Fit holder -4-  and insert brake line -1-  into the brake calliper.
    2. 2.2  Screw in and tighten screw securing holder to brake calliper -2-  .

      > Tightening torque 10 Nm (7.4 ftlb.)

    3. 2.3  Screw in and tighten union nut on brake line -3-  .

      > Tightening torque 16 Nm (12 ftlb.)

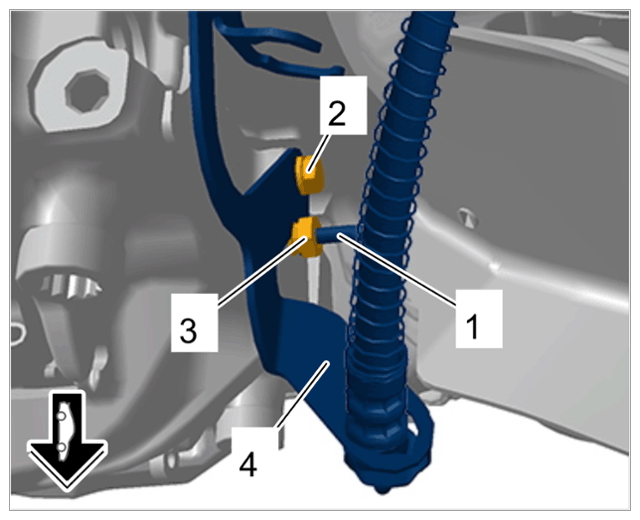

      G15526575Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Brake line on brake calliper

  3. Connect electric plug connection for brake pad wear indicator -1-  , lock it and clip it into the holder -2-  .

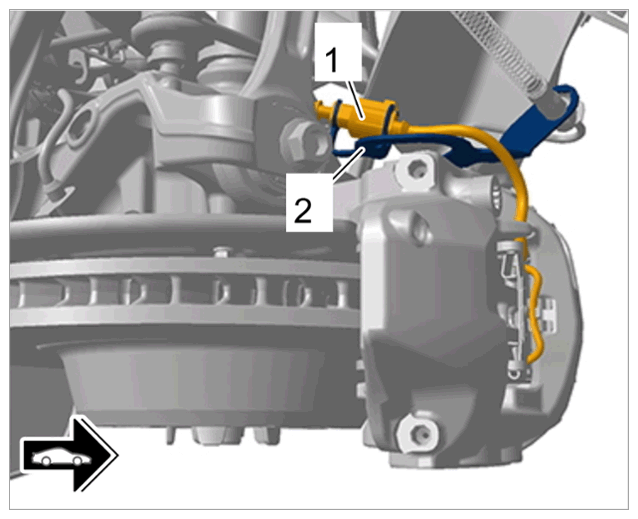

    G15526576Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for brake pad wear indicator
