Subsequent Work
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removing/fitting wheels
- Risk of damage to (ceramic} brake discs
→ Carefully guide the wheel towards the wheel hub, thereby preventing any heavy impact on the (ceramic) brake disc.
Information
On vehicles fitted with PCCB brakes, assembly aids (two assembly pins) -1- must be used for removing and mounting the wheels.

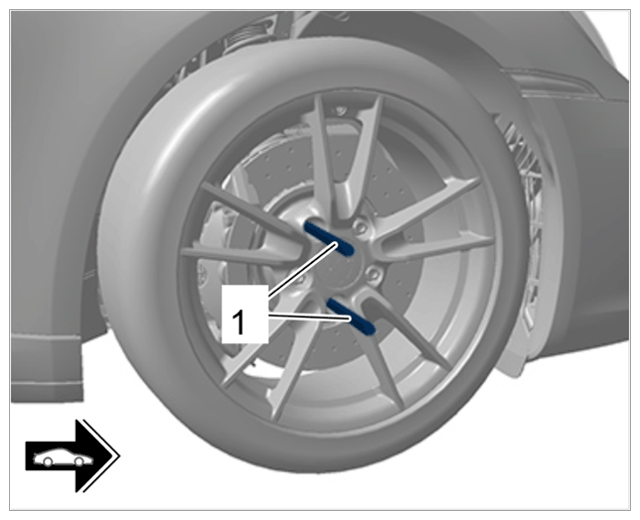

Wheel assembly pins (shown on the front axle)
- Fit wheel.
