Securing Rear Brake CALLIPER
- Poisonous if swallowed!
- Irritation and damage to skin
- Avoid contact with paint surfaces
→ Store brake fluid in suitable, labelled containers only
→ Wear protective gloves and goggles
→ In the event of contact (eyes or skin), wash immediately with water
→ In the event of contact with paint surfaces, wash off immediately with water - do not wipe off
Information
- The core of the warning contact line must not be left exposed! Worn insulation will result in malfunctions.

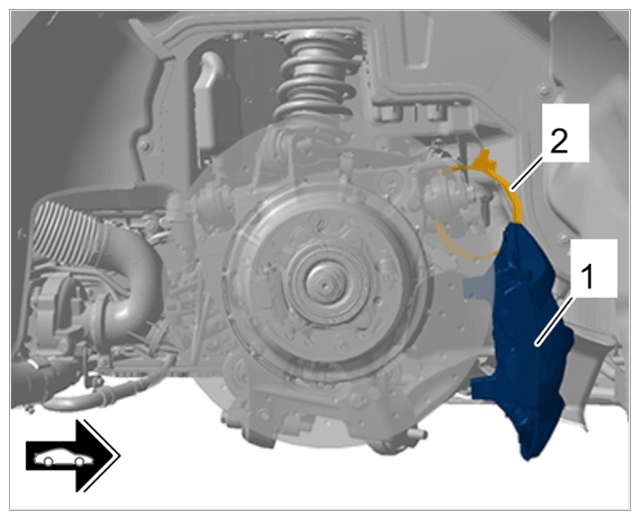

- Remove fastening element -2-
and remove brake calliper -1-
.
Rear brake calliper in wheel housing (shown as an example)
- Install brake calliper -1-
.
- 2.1 Fit brake calliper -1- .
- 2.2
Screw in and tighten brake calliper screws -2-
.
Standard brakes:
> Initial tightening 30 Nm (22.1 ftlb.)
> Final tightening + 75°
"S" brakes:
> Initial tightening 30 Nm (22.1 ftlb.)
> Final tightening + 75°
PSCB/PCCB brakes:
> Initial tightening 30 Nm (22.1 ftlb.)
> Final tightening + 75°

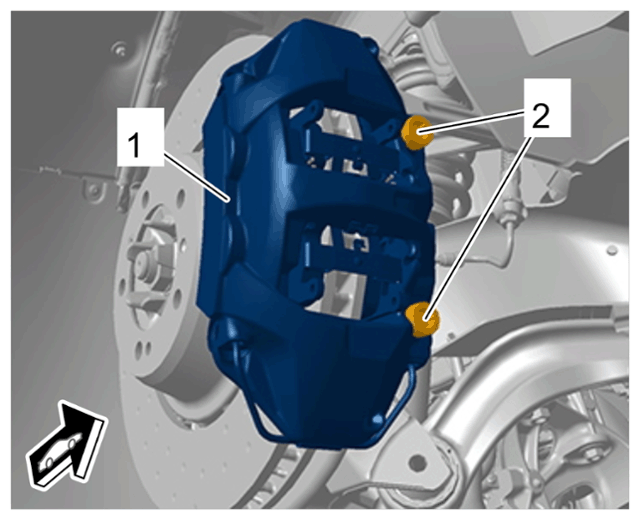

Rear brake calliper

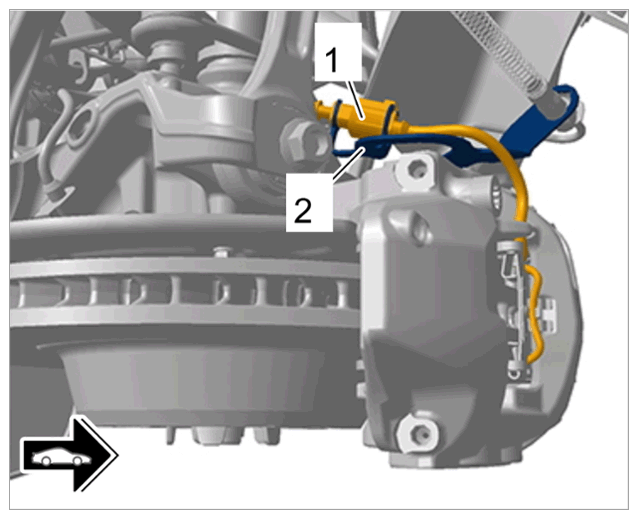

- Connect electric plug connection for brake pad wear indicator -1-
, lock it and clip it into the holder -2-
.
Electric plug connection for brake pad wear indicator
- Press the brake pedal several times to fit the brake pads on the brake disc again.
Information
The brake fluid level must be between the Min and Max markings.

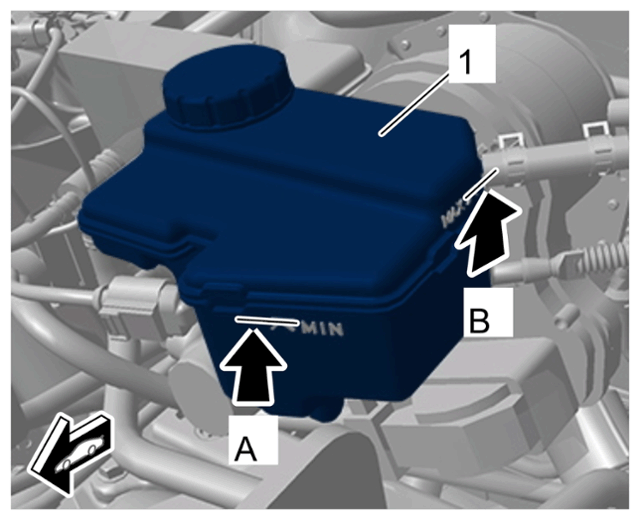

Min/Max markings on brake fluid reservoir
arrow A Minimum marking (Min) arrow B Maximum marking (Max) - Check brake fluid level in the reservoir and correct it if necessary.
