Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

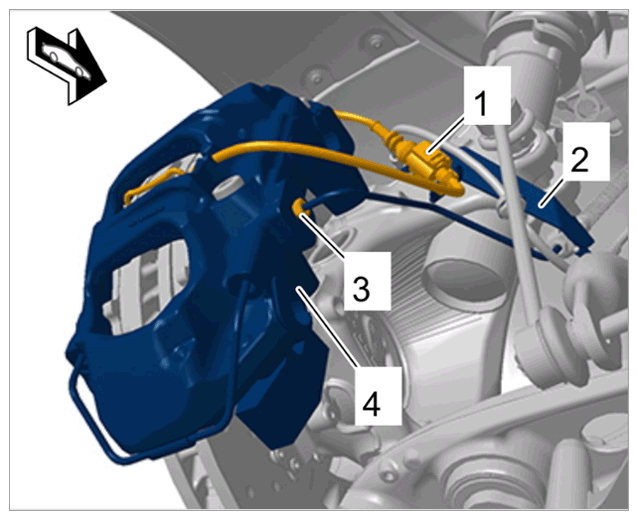

| Brake calliper to wheel bearing housing (grey cast iron) | Item 2: Cheese head bolt, M12 x 1.5 x 85/always replace bolts following removal | Initial tightening | 30 Nm (22.1 ftlb.) |
||
| Brake caliper to wheel bearing housing (grey cast iron) | Item 2: Cheese head bolt, M12 x 1.5 x 85/always replace bolts following removal | Final tightening | + 75° | ||
|
Brake calliper front |
|||||
| Brake calliper to adapter (PCCB) | Item 2: Cheese head bolt, M12 x 1.5 x 85/always replace bolts following removal | Initial tightening | 30 Nm (22.1 ftlb.) | ||
| Brake caliper to adapter (PCCB) | Item 2: Cheese head bolt, M12 x 1.5 x 85/always replace bolts following removal | Final tightening | + 75° | ||
|
Brake calliper front |
|||||
| Brake line to brake calliper (front) | M10 x 1 | Tightening torque | 16 Nm (12 ftlb.) | ||
|
Lines on brake calliper |
