Securing Front Brake CALLIPER

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

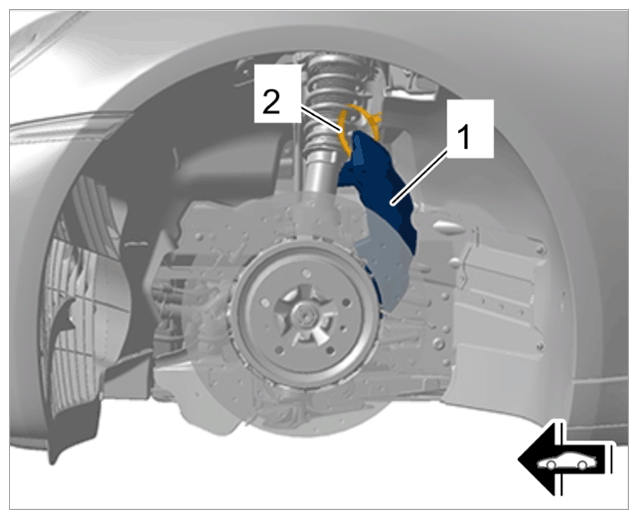

Front brake calliper in wheel housing (shown as an example)

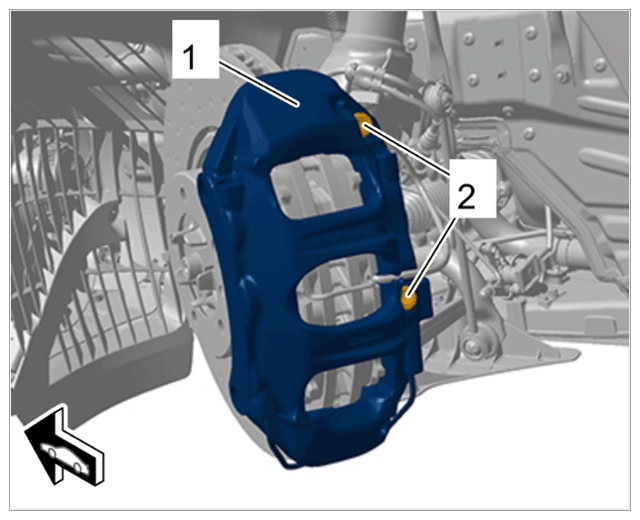

1. 2.1  Fit brake calliper -1-  on wheel bearing housing.
2. 2.2  Replace brake calliper screws -2-  .
3. 2.3 Screw in and tighten new  brake calliper screws -2-  .

   Grey cast-iron brakes:

   > Initial tightening 30 Nm (22.1 ftlb.)

   > Final tightening + 75°

   PSCB brakes:

   PCCB brakes:

   > Initial tightening 30 Nm (22.1 ftlb.)

   > Final tightening + 75°

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front brake calliper

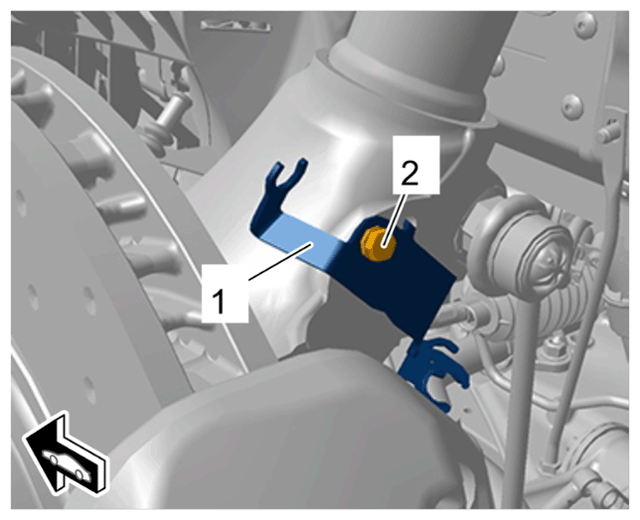

1. 3.1  Fit holder -1-  .
2. 3.2  Screw in and tighten screw on holder -2-  .

   > Tightening torque 10 Nm (7.5 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Holder on wheel bearing housing

1. 4.1  Engage line retaining rubbers -2-  in the holder -3-  .

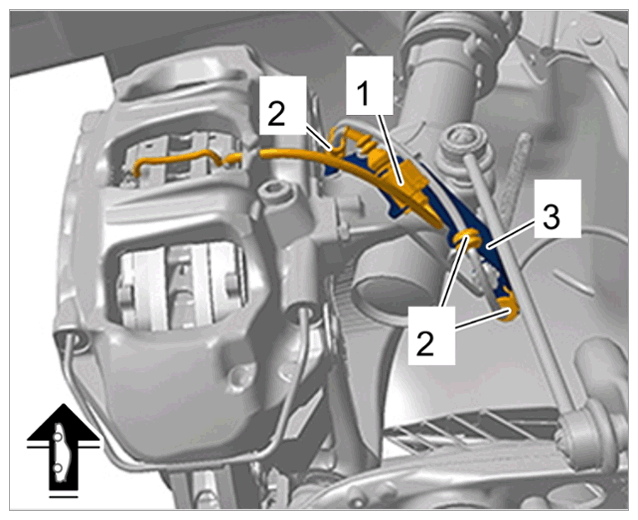

2. 4.2  Connect electric plug connection for brake pad wear indicator -1-  , lock it and clip it into the holder -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for brake pad wear indicator

Information

The brake fluid level must be between the Min  and Max  markings.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

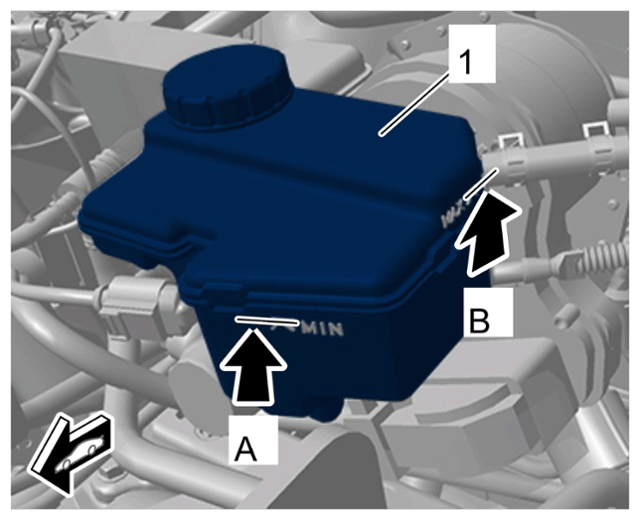

Min/Max markings on brake fluid reservoir
