Installing Brake Fluid Reservoir

WARNING: This page is about a different variant/trim than selected.

Replace rubber seals between the brake master cylinder and brake fluid reservoir.
Fit brake fluid reservoir -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

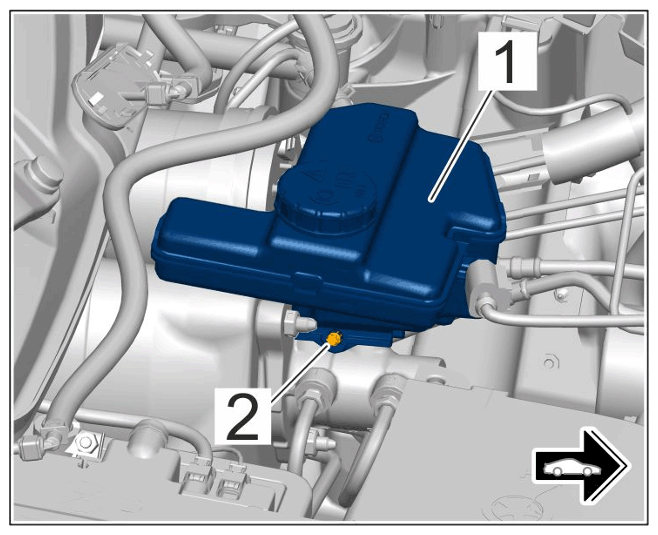

Mounting for brake fluid reservoir
1. 2.1 Fit brake fluid reservoir -1- into the brake master cylinder.
2. 2.2 Tighten screw -2- . > Tightening torque 7 Nm (5 ftlb.)
Fit lines on the brake fluid reservoir -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

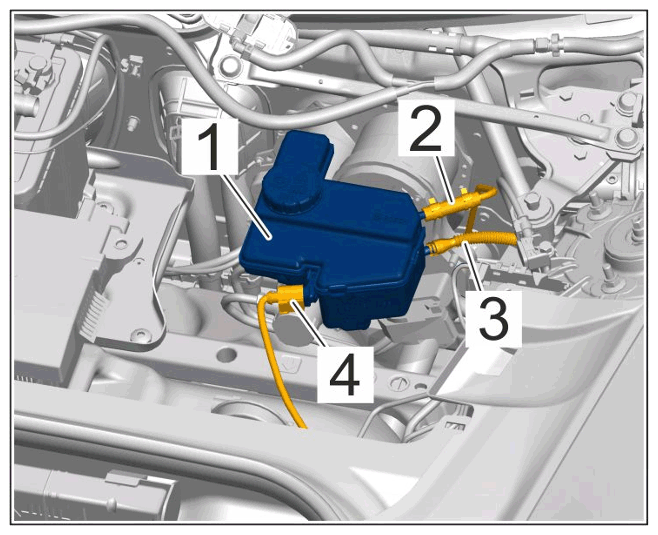

Lines on brake fluid reservoir
1. 3.1 Connect and lock electric plug connection -4- .
2. 3.2 On vehicles with manual transmission: Connect vent line -2- and return line -3- to the brake fluid reservoir -1- .
