Checking Brake Fluid Level

Information

• The brake fluid level must not exceed the MAX marking.
• Check brake fluid quality. Use only new DOT 4 brake fluid.
• Brake fluid can be ordered using the Porsche Electronic Parts Catalogue (PET).

1. Check brake fluid level. The brake fluid level must be between the MIN and MAX markings.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

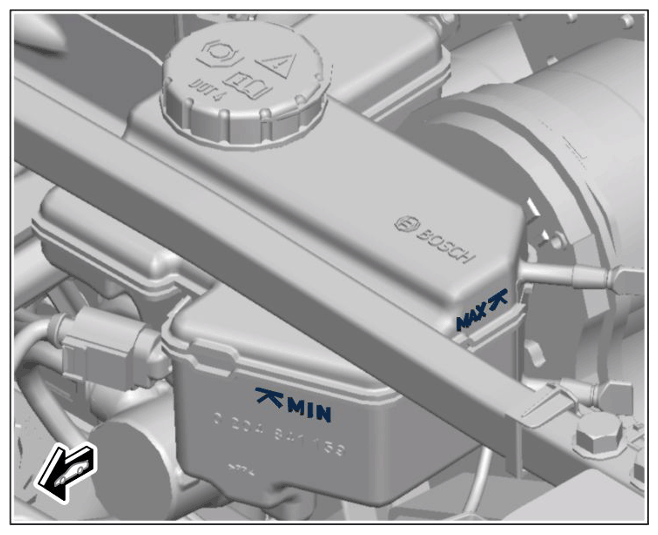

   Markings on reservoir

2. If necessary: Correct the brake fluid level.
