Removing Brake Shoes

WARNING: This page is about a different variant/trim than selected.
  1. Mark installation position of the brake shoes and adjustment device.
  2. Loosen adjustment device -1-  completely using a suitable tool (e.g. a screwdriver).
    G15526502Courtesy of PORSCHE CARS NORTH AMERICA, INC.

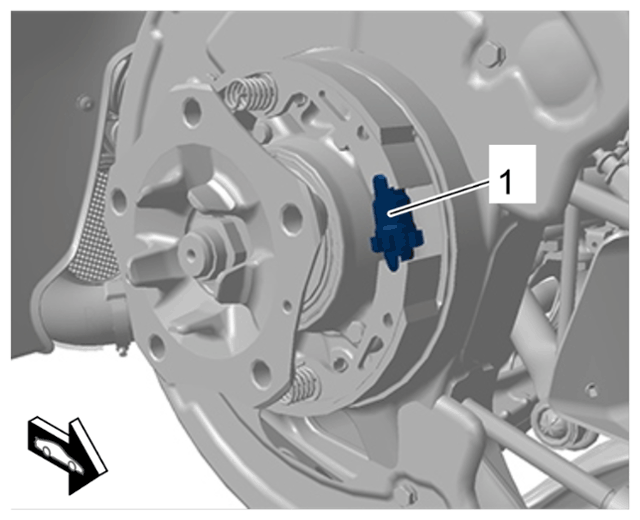

    Adjustment device for hake shoes

    WARNING: Preloaded or pressurised components
    • Risk of injury (e.g. crushing or bruising) when removing and installing springs.

      → Do not reach into the danger area.

      → Relieve the tension on components before starting work.

      → Secure components to prevent them from loosening suddenly.

      → Wear protective gloves and goggles.

      → Be very careful when working on the brake system.

  3. Remove brake shoes -1-  .
    1. 3.1  Press compression springs -2-  in slightly using a suitable tool, turn by 90° and remove them.
    2. 3.2  Disengage tension springs -3-  .
    3. 3.3  Remove brake shoes -1-together with adjustment device -4-  .
      G15526503Courtesy of PORSCHE CARS NORTH AMERICA, INC.

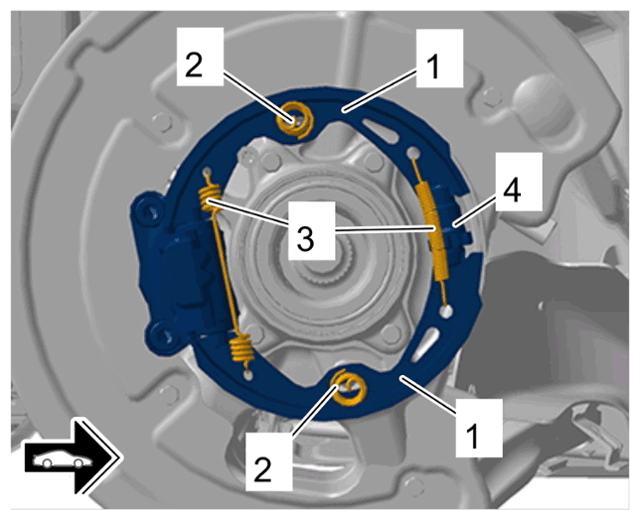

      Brake shoes

  4. Secure spreader device (actuator) -1-  of the electric parking brake using a tie-wrap -2-  to prevent it from turning.
    G15526504Courtesy of PORSCHE CARS NORTH AMERICA, INC.

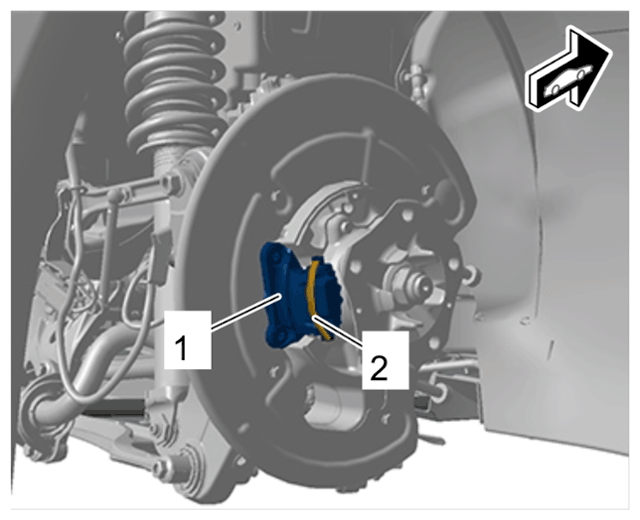

    Spreader device (actuator)
