Removing Actuator For Parking Brake
WARNING: This page is about a different variant/trim than selected.

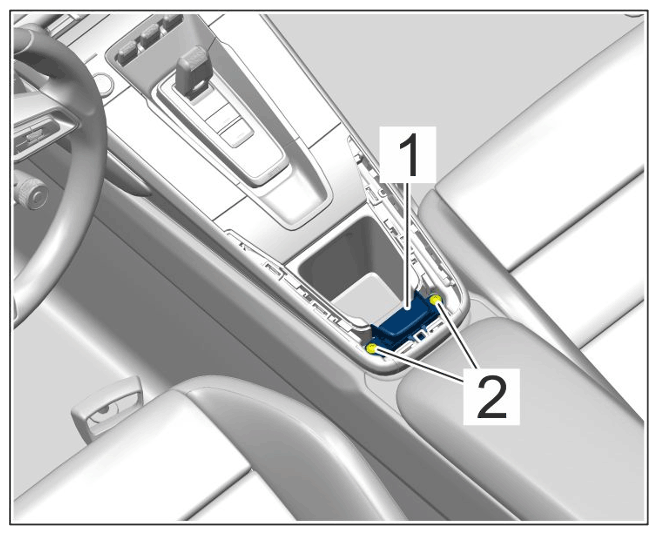

- Unscrew screws -2-
on parking brake actuator -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Mounting for parking brake actuator

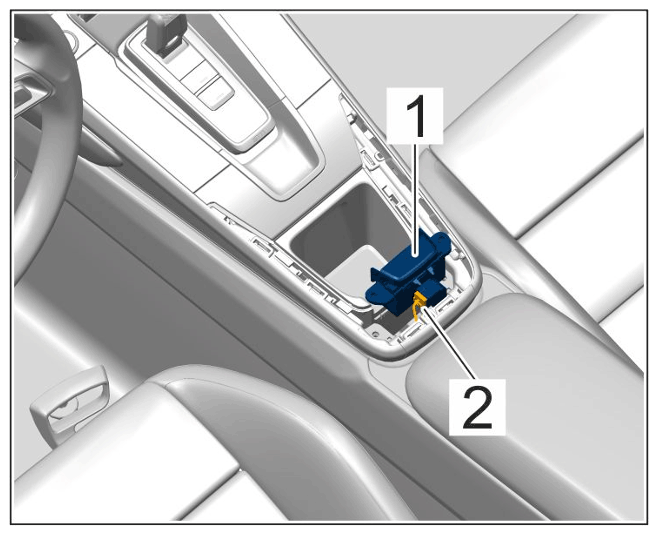

- Release and disconnect electric plug connection -2-
on parking brake actuator -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Electric plug connection for parking brake actuator
