Installing Actuator For Electric Parking Brake
WARNING: This page is about a different variant/trim than selected.
- Push on and lock electric plug connection -2-
for parking brake actuator -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Electric plug connection for parking brake actuator
- Tighten screws -2-
on parking brake actuator -1-
. > Tightening torque 3 Nm
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

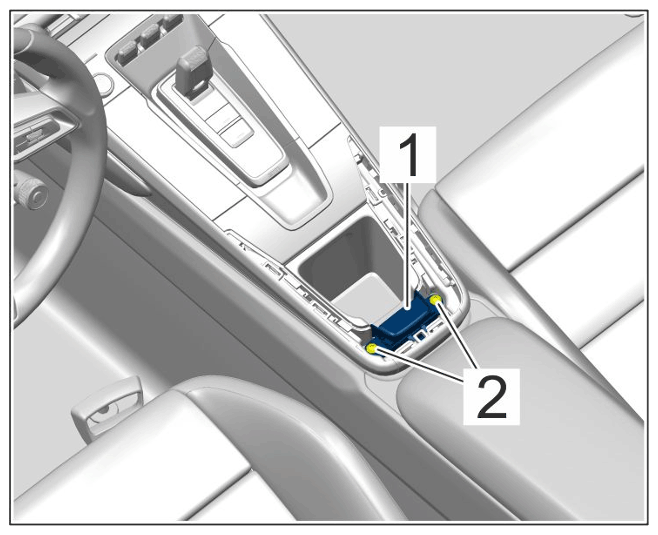

Mounting for parking brake actuator
