Removing Rear Brake Disc

WARNING: This page is about a different variant/trim than selected.
  1. Move electric parking brake (EPB) into installation position.
    1. 1.1  Connect PIWIS Tester  to the vehicle; switch on PIWIS Tester  .
    2. 1.2  Switch on ignition.
    3. 1.3  Start diagnostics.
    4. 1.4  Select 'Porsche Stability Management (PSM)'  control unit.
    5. 1.5  Select 'Drive links/tests'  tab.
    6. 1.6  Select menu item 'Start brake pad change mode'  ; press to continue.
    7. 1.7  Follow the instructions on the Tester.
  2. Wheels with wheel bolts:  Remove brake disc -1-  .
    1. 2.1  Remove brake disc centring screws -2-  .
    2. 2.1  Replace brake disc centring screws -2-  .
    3. 2.3  Remove brake disc -1-  from the wheel hub.

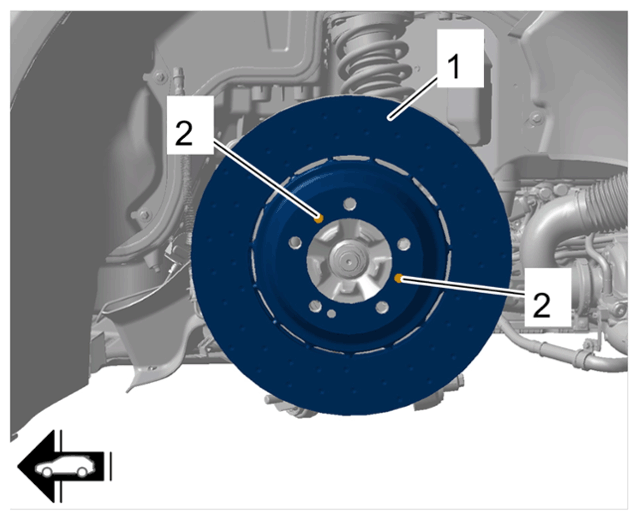

      G15526476Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Rear brake disc

  3. Wheels with centre lock (not GT3 vehicles):  Remove brake disc -1-  .
    1. 3.1  Unscrew wheel driver -2-  .
    2. 3.2  Replace wheel driver -2-  with screws.
    3. 3.3  Remove brake disc -1-  from the wheel hub.

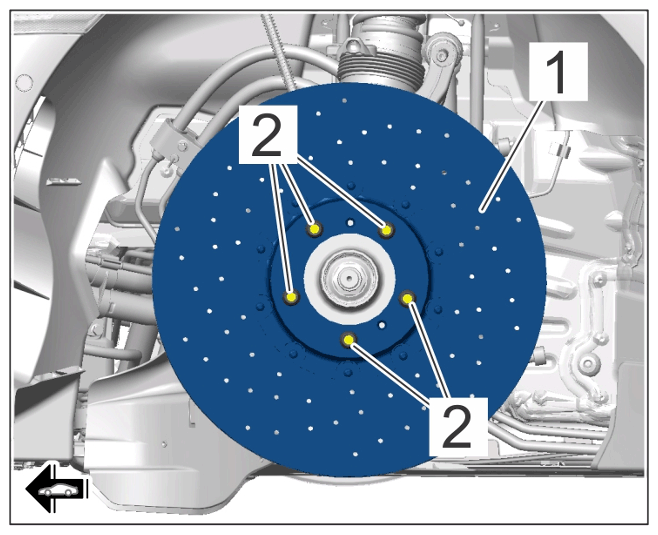

      G15526477Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Brake disc wheel driver

    4. Wheels with centre lock GT3 vehicles:  Remove brake disc -1-  .

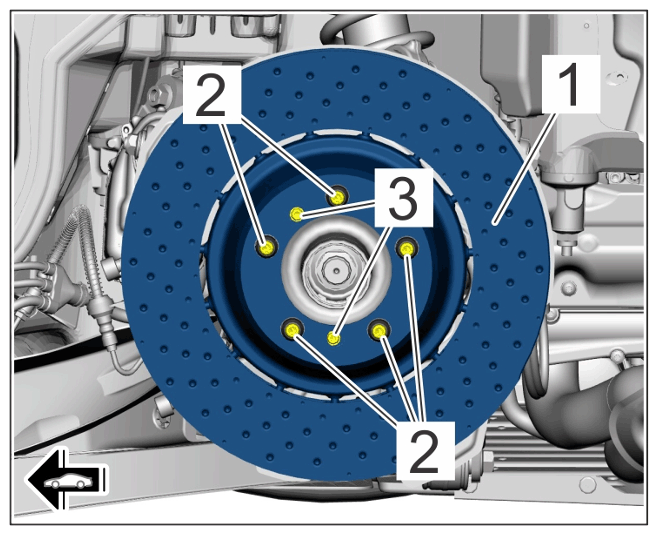

      G15526478Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Brake disc GT3

    5. 4.1  Remove and replace brake disc centring screws -3-  .
    6. 4.2  Remove brake disc -1-  from the wheel hub.
