Measuring Rear Brake Disc - Lateral Runout

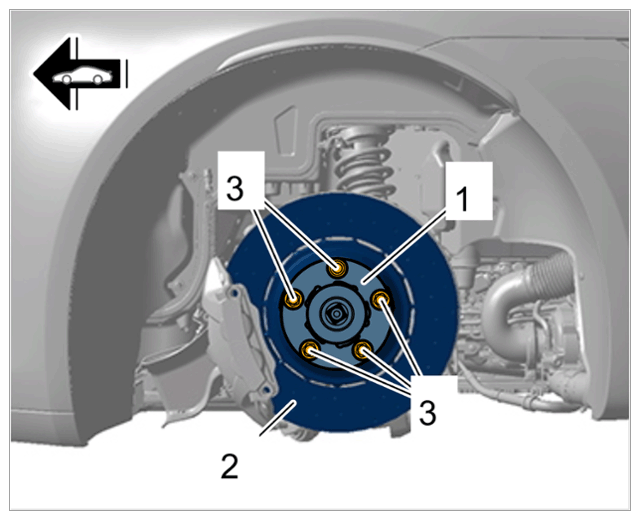

1. 1.1 > 9510/1 - Adapter plate-1-  must be fitted on the hub of the brake disc -2-  .
2. 1.2  Screw in and tighten wheel bolts -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Adapter plate on rear brake disc

Fit > 9510/1 - adapter plate-1-  .

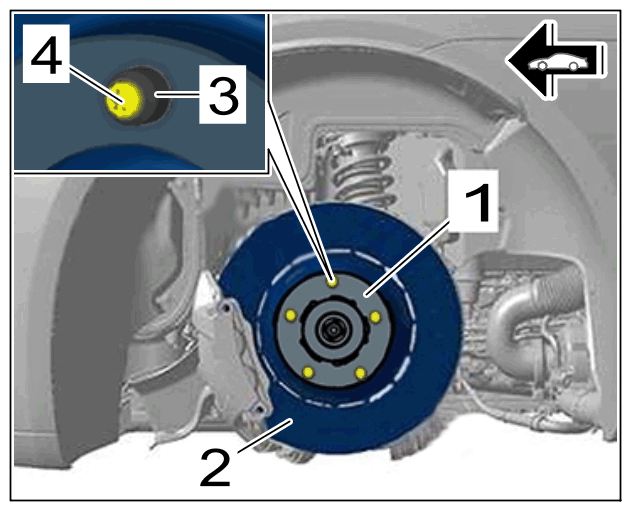

1. 2.1 > 9510/1 - Adapter plate-1-  must be fitted on the hub of the brake disc -2-  .
2. 2.2  Position wheel driver pins -3-  .
3. 2.3  Screw in and tighten screws for wheel driver pins -4-  .

   > Tightening torque 14 Nm (10.5 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Adapter plate on rear brake disc (PCCB)

Information

The front face of the wheel hub must not be corroded.

The front face of the wheel hub must be cleaned using a fine emery cloth if necessary.

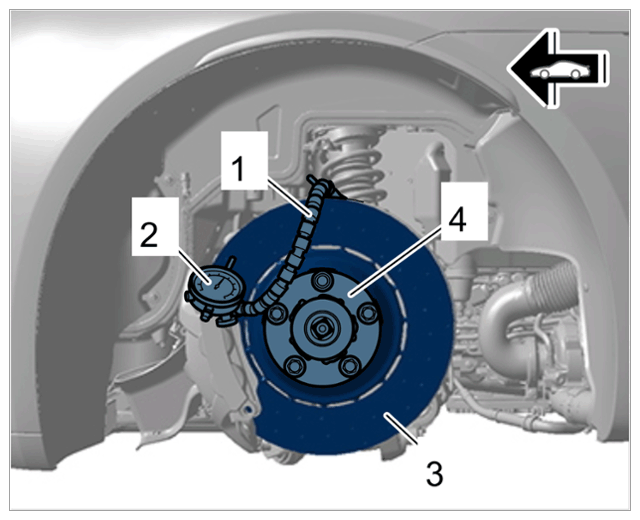

1. 3.1  Secure ball joint arm -1-  from > Nr.147-1 - dial gauge set with ball joint arm  at a suitable position on the wheel suspension.
2. 3.2  Fit dial gauge -2-  from > Nr.147-1 - dial gauge set with ball joint arm  and adjust it so that the dial gauge -2-is tout hing the outer edge of the brake disc -3-  with slight preload.
3. 3.3  Set dial gauge -2-  from > Nr.147-1 - dial gauge set with ball joint arm  to zero, turn the brake disc -3-  at the > 9510/1 - adapter plate-4-  slowly by one full turn and check the deflection of the dial gauge -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Dial gauge on rear brake disc

Measure lateral runout of the wheel hub.

Maximum lateral runout of brake disc:  > Dimension 0.07 mm
