Removing Brake Disc Front (Central Lock)

WARNING: This page is about a different variant/trim than selected.
  1. Remove brake disc front -1-  .
    1. 1.1  Unscrew screws for wheel driver pins -2-  and replace them. Not valid for GT3 vehicles!

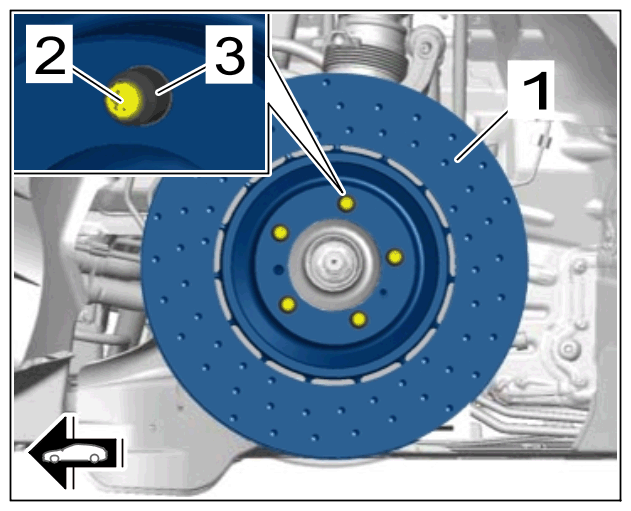

      G15526449Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Brake disc front with central lock (not GT3)

    2. 1.2  Remove and replace wheel drive pin -3-  . Not valid for GT3 vehicles!
    3. 1.3 On GT3 vehicles:  Unscrew centring screws -3-  and replace them.

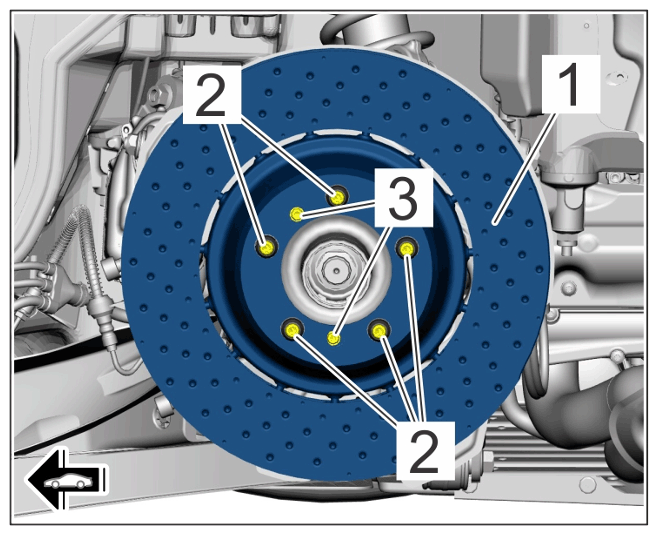

      G15526450Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Brake disc GT3

    4. 1.4  Take off brake disc front.
