Installing Brake Disc Front

WARNING: This page is about a different variant/trim than selected.
  1. Prepare for installing the brake disc front.
    1. 1.1  Check that all components are in perfect condition (visual inspection) and replace them if necessary.
    2. 1.2  Clean the levelling and centring surfaces on the brake disc front and wheel hub.
    3. 1.3  Apply a very thin coat of Optimoly TA (aluminium paste) to the centring surface on the wheel hub. Not relevant for grey cast-iron and PCCB brake discs on GT3 vehicles!
  2. Install brake disc front -1-  .
    1. 2.1  Fit brake disc front -1-  on the wheel hub.
    2. 2.2  Fit and tighten centring screws for front brake disc -2-  .

      > Tightening torque 5 Nm (3.7 ftlb.)

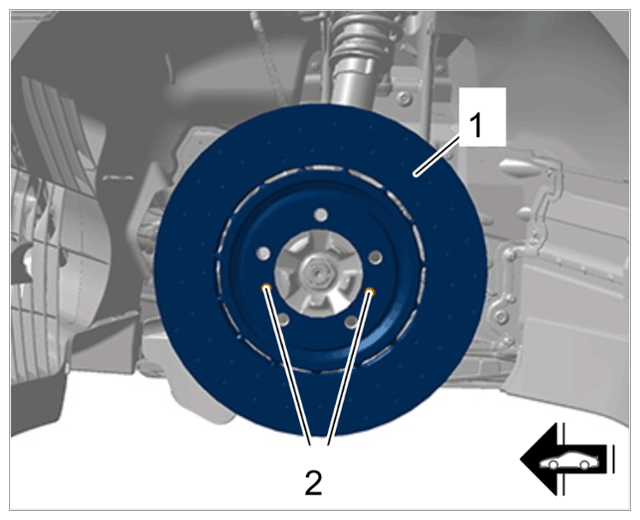

      G15526451Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Brake disc front
