Removing Brake Disc Air Guide (Rear)
WARNING: This page is about a different variant/trim than selected.
- Remove brake disc air guide -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

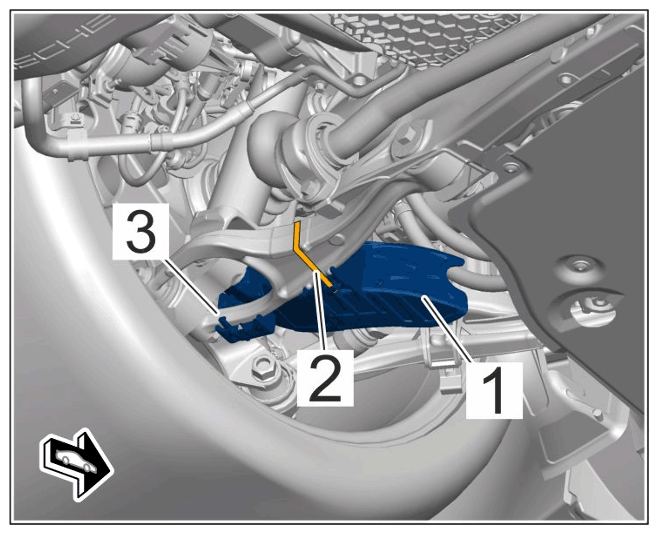

Mounting for brake disc air guide
- 1.1
Cut tie-wrap -2-
.
- 1.2
Loosen -3-
retaining clip.
