Installing Brake Disc Air Guide (Rear)
WARNING: This page is about a different variant/trim than selected.
- Install brake disc air guide -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

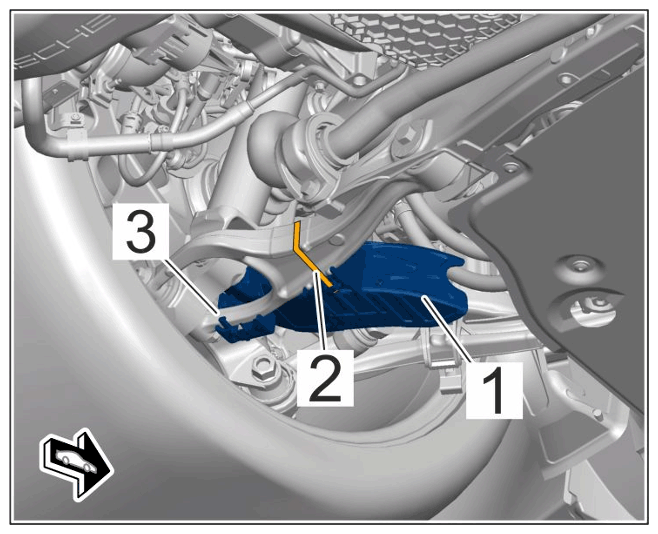

Mounting for brake disc air guide
- 1.1
Secure retaining clip -3-
on trailing arm.
- 1.2
Tighten tie-wraps -2-
using > VAS 6927 - Tie-wrap pliers
.
