Installing Brake Disc Air Guide (Rear)
WARNING: This page is about a different variant/trim than selected.
- Install brake disc air guide -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

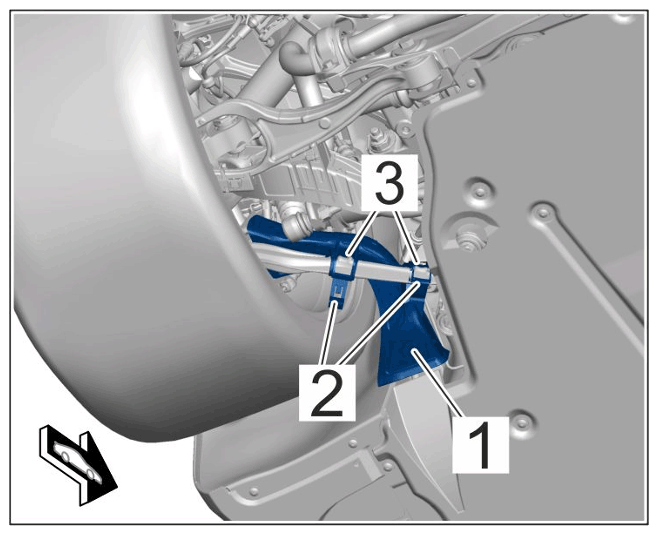

Mounting for brake disc air guide
- 1.1
Align clips -2-
with the pins -3-
.
- 1.2
Secure clips -2-
(clips must engage fully).
