Install Pccb Brake Disc Air Guide (Rear)
WARNING: This page is about a different variant/trim than selected.
- Install brake disc -1-
air guide.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

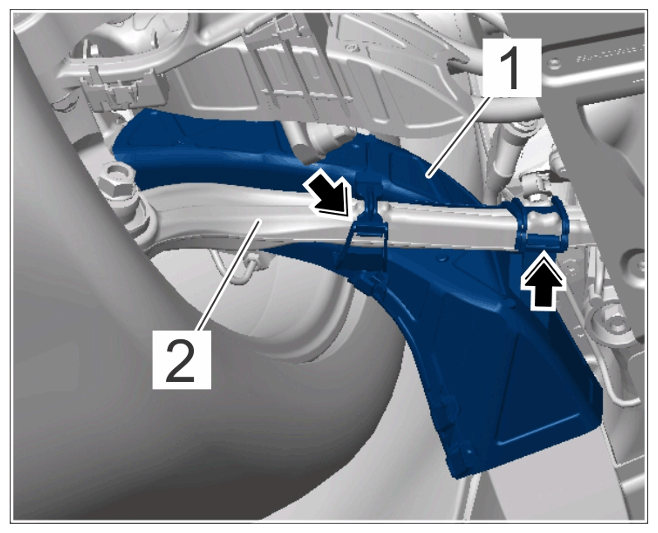

Brake-disc air guide
- 1.1
Position the air guide -1-
on the trailing arm -2-
and close the fastening clips -Arrows-
.
