Installing Brake Pedal
WARNING: This page is about a different variant/trim than selected.

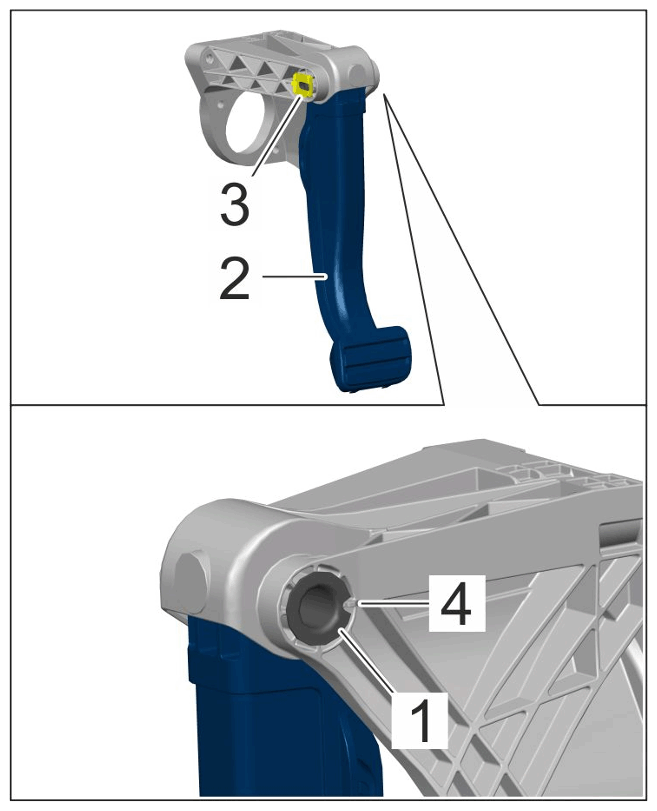

- Fit pedal bearing shaft -1-
on the brake pedal -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Pedal bearing shaft
- 1.1
Align pedal bearing shaft -1-
in accordance with the marking -4-
and guide it in.
- 1.2
Secure the lock -3-
.
