Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance | Tolerance |
|---|---|---|---|---|---|

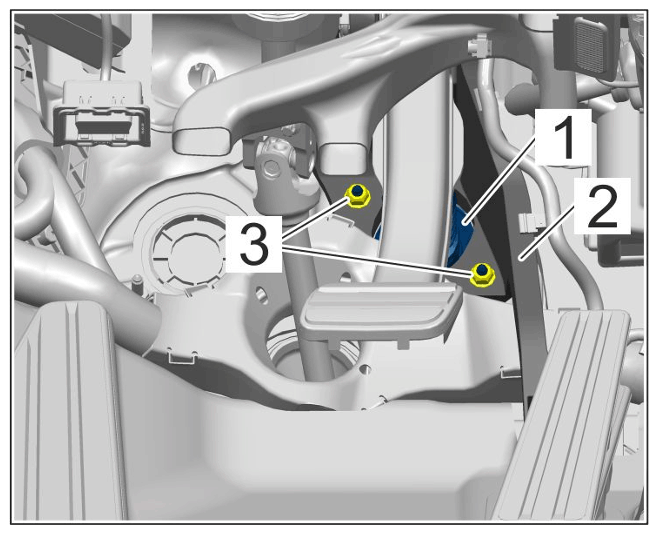

| Brake booster to mounting saddle | Hexagon nut, M8, replace | Tightening torque | 23 Nm (17 ftlb.) | ||
|
Mounting for brake booster on mounting saddle |
|||||

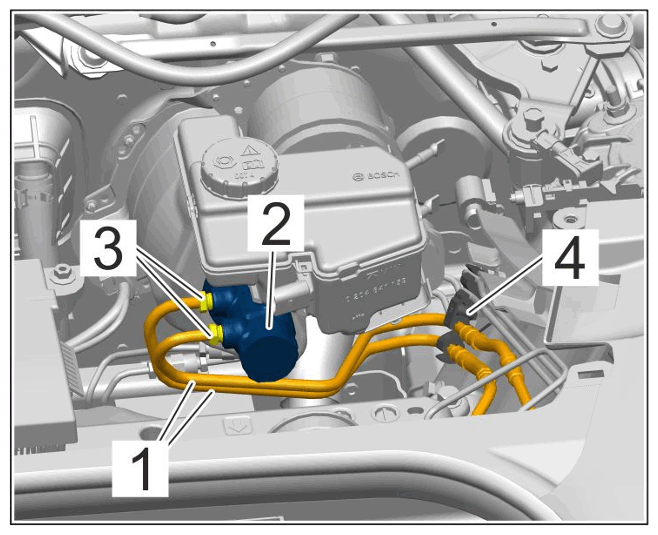

| Brake lines to brake master cylinder | Cap screw, M14 x 1 | Tightening torque | 16 Nm (12 ftlb.) | ||
|
Brake lines on brake master cylinder |
|||||
