Technical Values

WARNING: This page is about a different variant/trim than selected.
Location Description Type Basic value Tolerance Tolerance
Brake calliper to wheel bearing housing (grey cast iron) Item 2: Cheese head bolt, M12 x 1.5 x 85/always replace bolts following removal Initial tightening 30 Nm (22.1 ftlb.)
Brake calliper to wheel bearing housing (grey cast iron) Item 2: Cheese head bolt, M12 x 1.5 x 85/always re place bolts following removal Final tightening + 75°
G15522543Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake calliper front
Brake calliper to adapter (PCCB Item 2: Cheese head bolt, M12 x 1.5 x 85/always replace bolts following removal Initial tightening 30 Nm (22.1 ftlb.)
Brake calliper to adapter (PCCB Item 2: Cheese head bolt, M12 x 1.5 x 85/always replace bolts following removal Final tightening + 75°
G15522544Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake calliper front

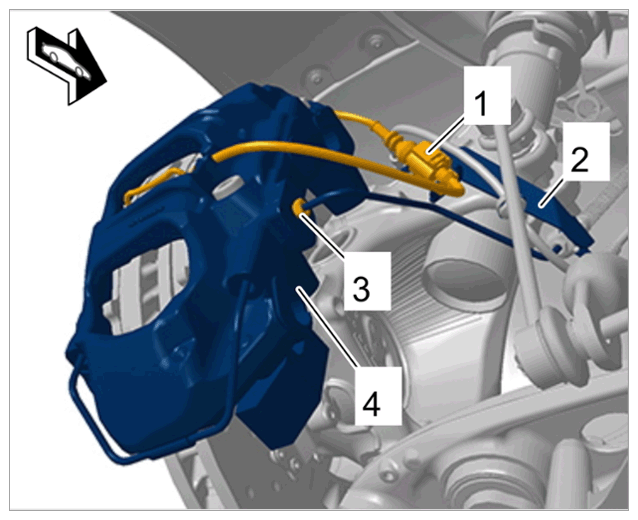

Brake line to brake calliper (front) M10 x 1 Tightening torque 16 Nm (12 ftlb.)
G15522545Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lines on brake calliper
