Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance | Tolerance |
|---|---|---|---|---|---|
| Brake lines to brake master cylinder | Cap screw, M14 x 1 | Tightening torque | 15 (12 ftb.) Nm | ||
|

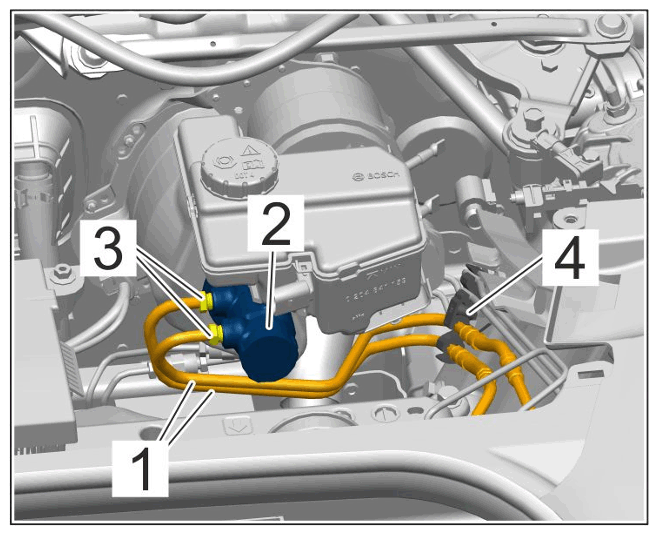

Brake lines on brake master cylinder |
|||||
| Brake master cylinder to brake booster | M8 hexagon nut must always be replaced following removal | Tightening torque | 20 Nm (15 ftlb.) | ||
|

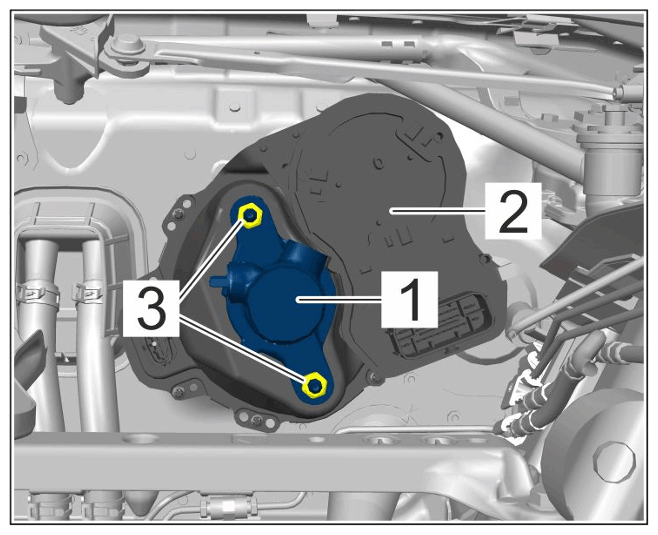

Securing brake master cylinder |
|||||
