Removing Connecting Link For Anti-Roll Bar
WARNING: This page is about a different variant/trim than selected.
- Remove connecting link -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

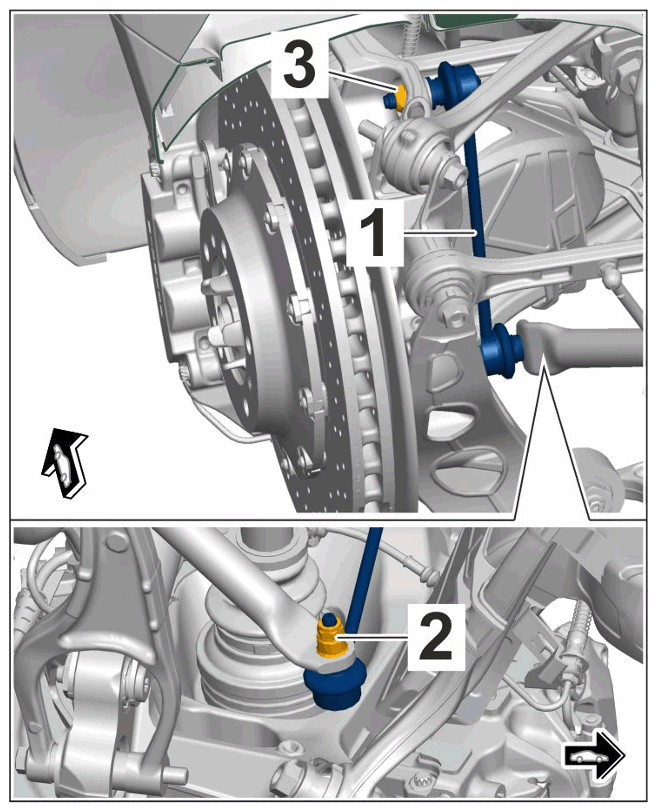

Mounting for connecting link (conventional)
- 1.1
Unscrew nut -2-
on the anti-roll bar and counter at the articulated bolt on the connecting link.
- 1.2
Unscrew nut -3-
on the wheel bearing housing and counter at the articulated bolt on the connecting link.
