Installing Connecting Link For Anti-Roll Bar
WARNING: This page is about a different variant/trim than selected.

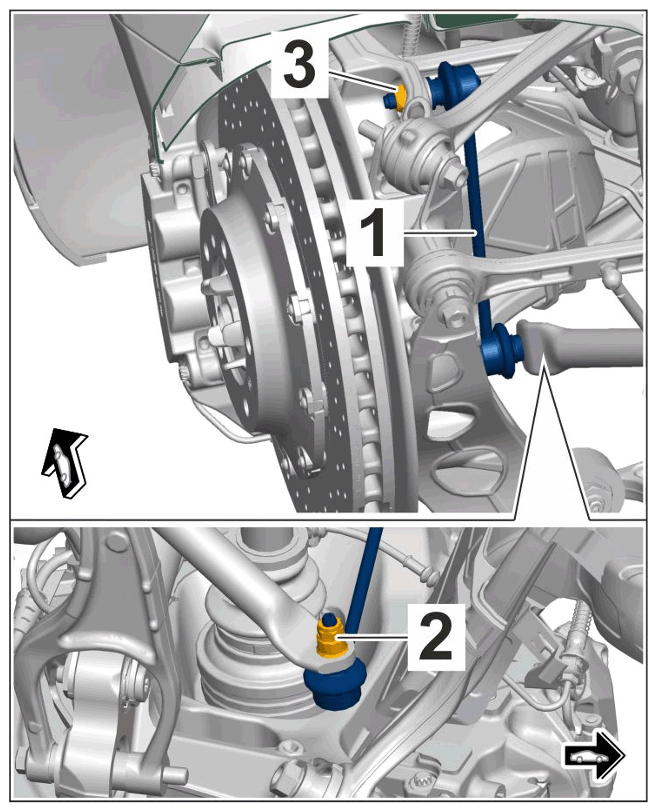

- Install connecting link -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Mounting for connecting link (conventional)
- 1.1
Tighten nut -3-
on the wheel bearing housing. > Initial tightening 50 Nm (36.9 ftlb.)
> Final tightening + 40°
- 1.2
Tighten nut -2-
on the anti-roll bar. > Initial tightening 40 Nm (29.5 ftlb.)
> Final tightening + 30°
