Removing Connecting Link For Anti-Roll Bar (PDCC)
WARNING: This page is about a different variant/trim than selected.
WARNING:
Caustic fluids
- Danger of chemical burns
→ Wear personal protective gear.
→ Ensure that there is good ventilation.
→ Avoid contact with caustic fluid.
→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.
NOTE:
NOTIFICATION
Aggressive fluids
Aggressive fluids
- Risk of damage to components and surfaces
→ Do not spill fluids.
→ In the event of contact, wash the component or surface with water.
→ Replace components that are already damaged.
- Remove connecting link -1-
.

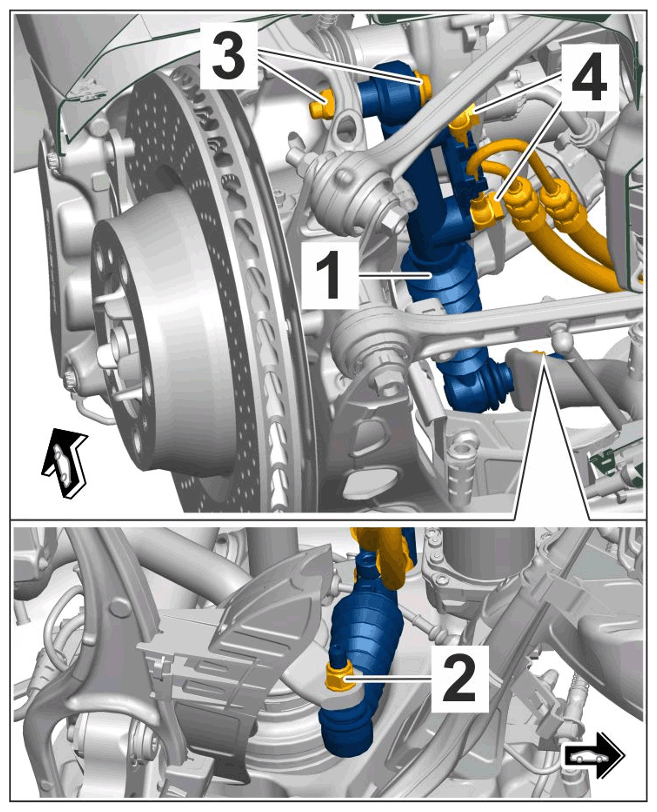

Mounting for connecting link (PDCC)
- 1.1 Place a suitable absorbent cloth underneath and use a drip pan if possible.
- 1.2 Unscrew cap screws -4- on the pressure lines and pull off pressure lines.
- 1.3 Unclip pressure lines from plastic bracket on the connecting link.
- 1.4 Unscrew nut -2- on the anti-roll bar and counter at the articulated bolt on the connecting link.
- 1.5 Loosen threaded joint -3- on the wheel bearing housing.
