Removing Rear Wheel Bearing

Information

The pictures shown in this document may differ from the original.

Information

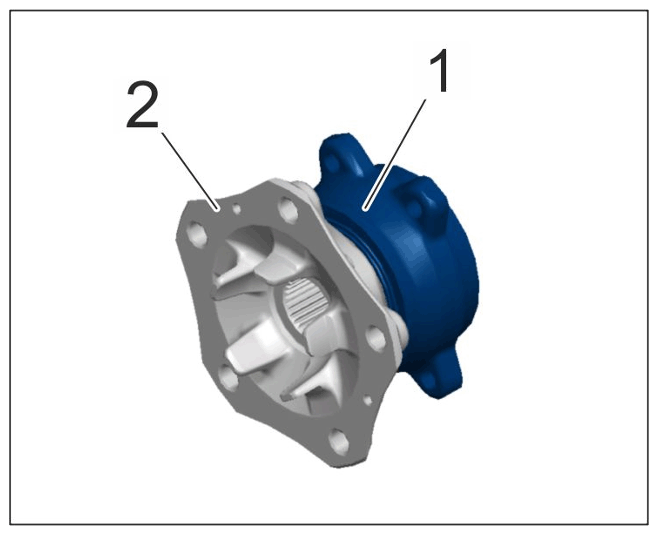

Wheel bearing -1-  is removed together with wheel hub -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wheel bearing and wheel hub

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

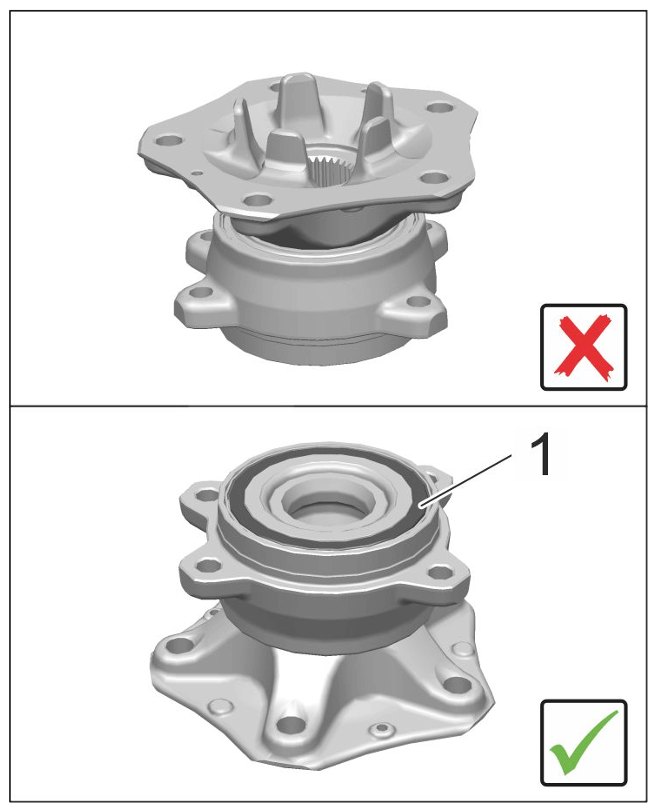

Wheel bearing unit

• The wheel bearing has a magnetized multipole seal -1- , which acts as a pulse sender for the speed sensor.
• The multiple-pole seal -1- must always face upwards when the wheel bearing is set down (this does not apply when pressing the wheel hub into the wheel bearing). Do not d image the multipole seal and do not come into contact with magnetic objects (e.g. magnetized screwdriver, magnet).

1. Remove wheel bearing -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

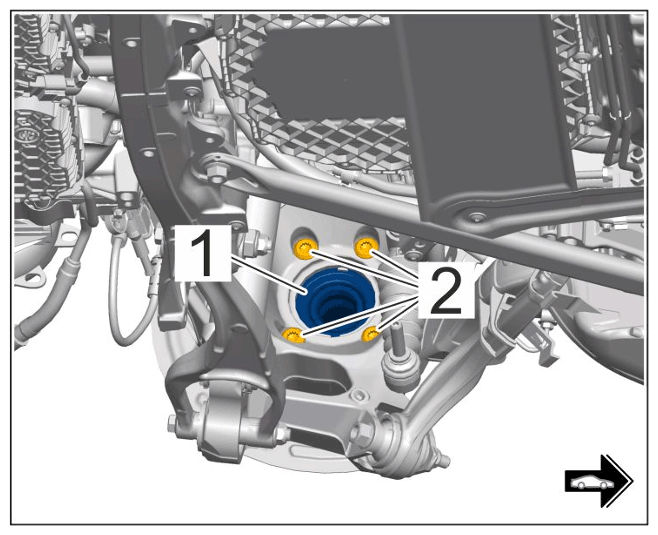

   Wheel bearing mounting

   1. 1.1  Unscrew screws -2-  .
   2. 1.2  Remove wheel bearing -1-  .
