Installing Rear Wheel Bearing

Information

The pictures shown in this document may differ from the original.

1. Install wheel bearing -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

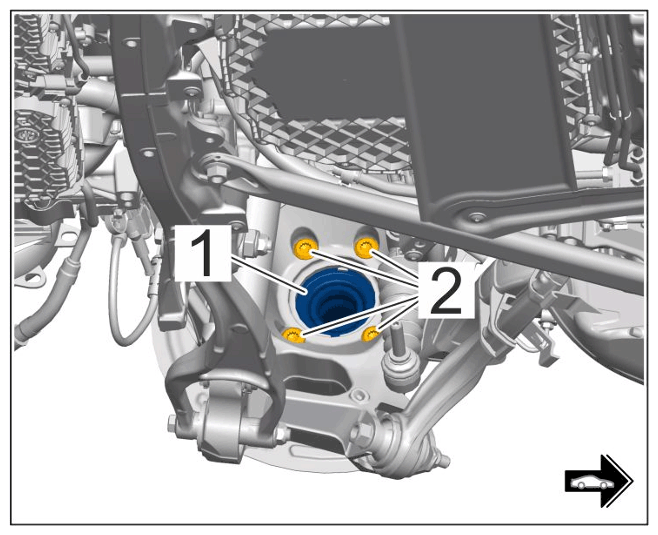

   Wheel bearing mounting

   1. 1.1  Position wheel bearing -1-  .
   2. 1.2 Fit new  screws -2-  and tighten crosswise.

      For 992 basic system:

      > Initial tightening 80 Nm (59 ftlb.)

      > Final tightening torque angle + 120°

      For 992 GT3:

      > Tightening torque 80 Nm (60 ftlb.)

      > Final tightening angle + 120°
