Installing Wheel Bearing Housing

WARNING: This page is about a different variant/trim than selected.

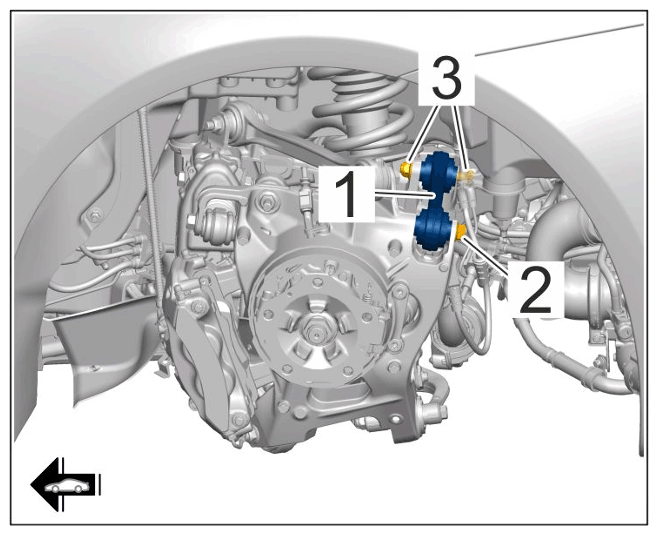

  1. Fit (rear) upper control arm -1-  on the wheel bearing housing.
    G15520795Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for upper control arm (rear)

    1. 1.1  Screw in screw -2-  as far as it will go (do not tighten!).

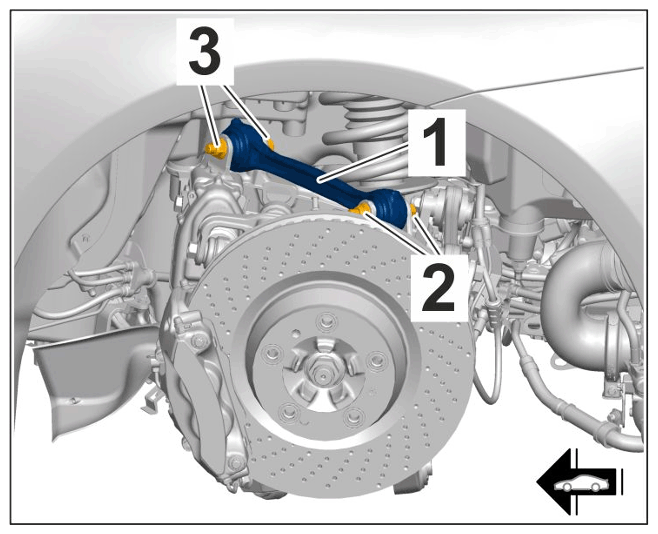

  2. Fit (front) upper control arm -1-  on the wheel bearing housing.
    G15520796Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for upper control arm (front)

    1. 2.1  Screw in screws -2-  as far as they will go (do not tighten!).
  3. Fit tie rod/servo motor for rear axle steering -1-  on the wheel bearing housing.
    G15520797Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for tie rod on wheel bearing housing

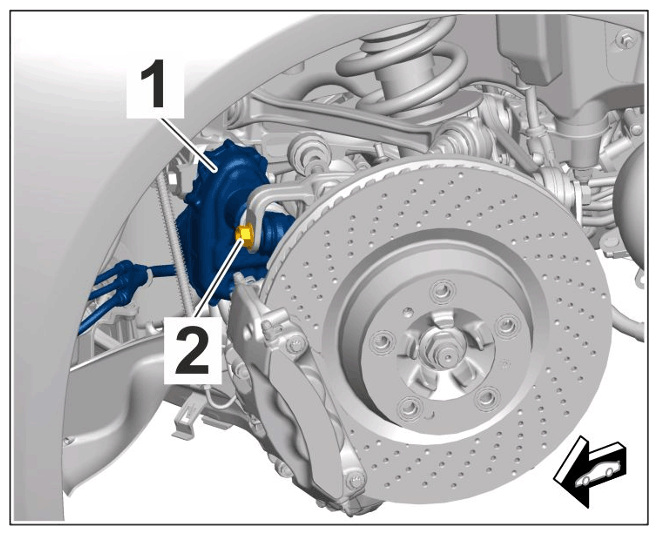

    G15520798Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for servo motor for rear axle steering on wheel bearing housing

    1. 3.1  Screw in screw -2-  as far as it will go (do not tighten!).
  4. Fit rear spring strut -1-  on the wheel bearing housing.
    G15520799Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for rear spring strut on wheel bearing housing

    1. 4.1  Screw in screws -2-  as far as they will go (do not tighten!).

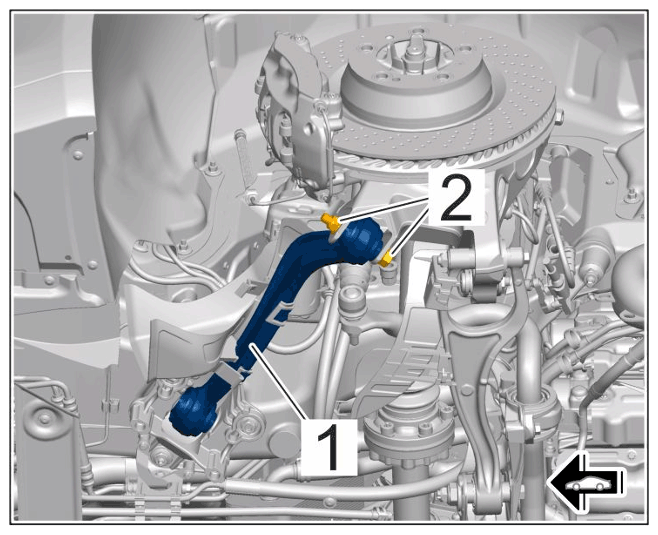

  5. Fit control arm -1-  on the wheel bearing housing.
    G15520800Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for control arm on wheel bearing housing

    1. 5.1  Screw in screws -2-  as far as they will go (do not tighten!).
  6. Fit trailing arm -1-  on the wheel bearing housing.
    G15520801Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for trailing arm

    1. 6.1  Screw in screws -2-  as far as they will go (do not tighten!).
  7. Tighten threaded joints in zero position.
    WARNING: Wheel bearing housing raised incorrectly
    • Risk of crushing
    • Risk of damage to components

      → Wear personal protective gear.

      → Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

    Information

    Threaded joints must only be tightened in zero position to prevent warping in the bearings.

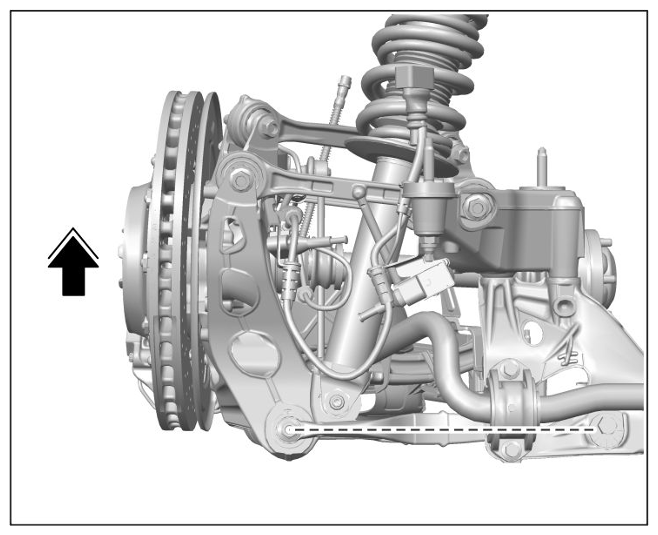

    1. 7.1  Lift the wheel bearing housing as far as required using lifting equipment (e.g. > VAS 6931 - Transmission and Engine Jack)  until the lower trailing arm is horizontal. > Zero position of rear axle
      G15520802Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Zero position of rear axle

    2. 7.2  Tighten screw -2-  on the wheel bearing housing. > Initial tightening 60 Nm (44.3 ftlb.)  > Final tightening torque angle + 90°
      G15520803Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Mounting for upper control arm (rear)

    3. 7.3  Tighten threaded joint securing upper control arm (at the front) to wheel bearing housing -2-  . > Initial tightening 70 Nm (51.6 ftlb.)  > Final tightening + 180°
      G15520804Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Mounting for upper control arm (front)

    4. 7.4  Tighten screw -2-  .

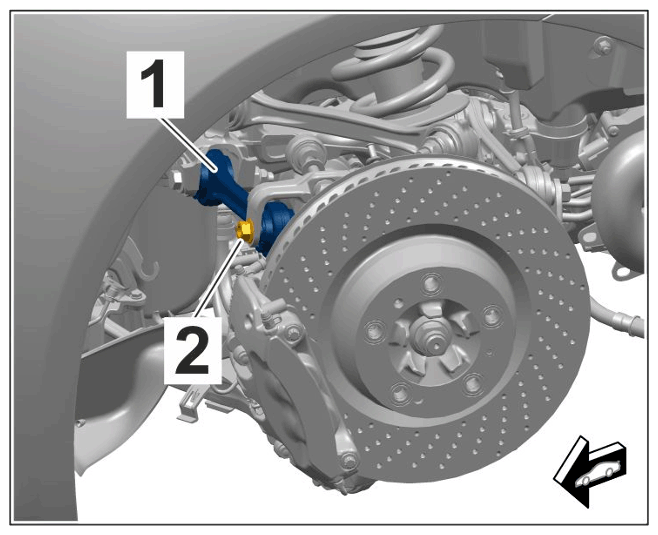

      Tie rod to wheel bearing housing: > Initial tightening 60 Nm (44.3 ftlb.  ) > Final tightening torque angle + 90°

      Servo motor for rear axle steering to wheel bearing housing: > Initial tightening 60 Nm (44 ftlb.)  > Final tightening + 90°

      G15520805Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Mounting for tie rod on wheel bearing housing

      G15520806Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Mounting for servo motor for rear axle steering on wheel bearing housing

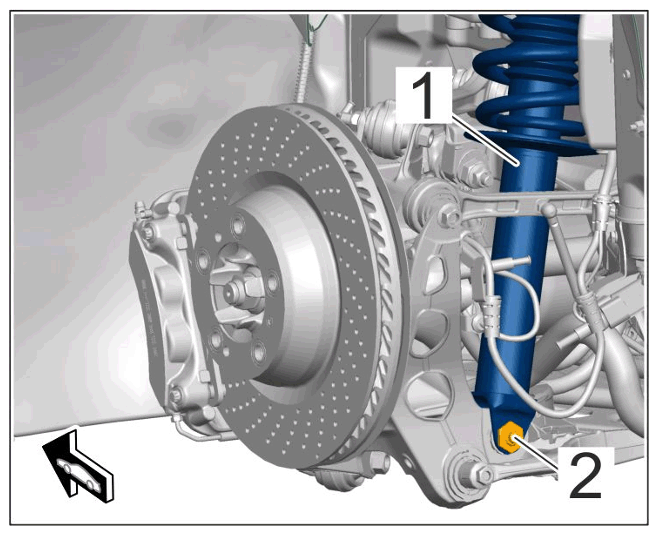

    5. 7.5  Tighten threaded joint securing rear spring strut to wheel bearing housing -2-  > Tightening torque 110 Nm (81.1 ftlb.)
      G15520807Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Mounting for rear spring strut on wheel bearing housing

    6. 7.6  Tighten threaded joint securing control arm to wheel bearing housing -2-  . > Initial tightening 70 Nm (51.6 ftlb.  ) > Final tightening + 180°
      G15520808Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Mounting for control arm on wheel bearing housing

    7. 7.7  Tighten threaded joint securing trailing arm to wheel bearing housing -2-  . > Initial tightening 70 Nm (51.6 ftlb.)  > Final tightening + 180°
      G15520809Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Mounting for trailing arm

  8. Fit connecting link -1-  on the wheel bearing housing.
    G15520810Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for connecting link (conventional)

    G15520811Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for connecting link (PDCC)

    1. 8.1 Conventional connecting link:  Tighten nut -3-  . > Initial tightening 50 Nm (36.9 ftlb.)  > Final tightening + 40°
    2. 8.2 PDCC connecting link:  Tighten threaded joint -3-  . > Initial tightening 50 Nm (36.9 ftlb.)  > Final tightening angle + 50 (37 ftlb.) °

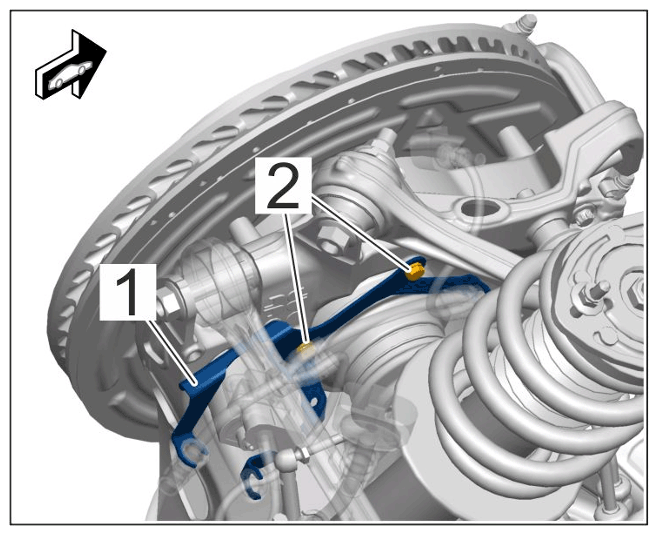

  9. Fit wiring harness holder -1-  .
    G15520812Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for wiring harness holder

    1. 9.1  Tighten screws -2-  . > Tightening torque 10 Nm (7.4 ftlb.)

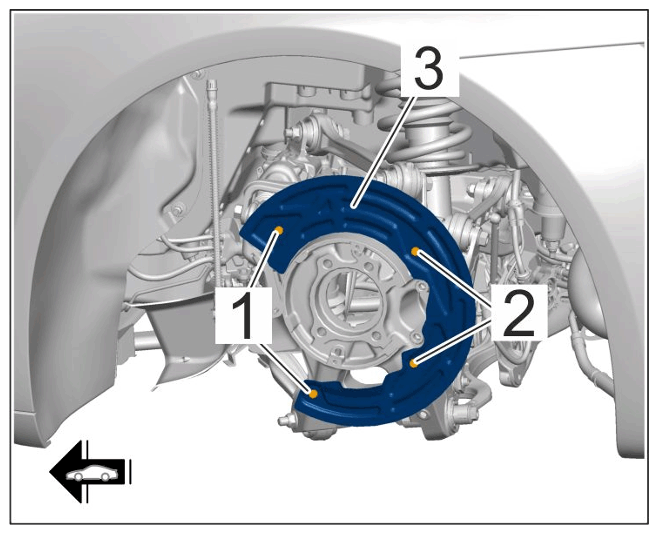

  10. Install brake disc cover plate -3-  .
    1. 10.1  Fit brake disc cover plate -3-  .
    2. 10.2  Screw in screws on brake disc cover plate -1 and 2-  by hand.
    3. 10.3  Tighten screws on brake disc cover plate -1-  .

      > Initial tightening 4 Nm (2.9 ftlb.)

      > Final tightening + 45 (33 ftlb.) °

    4. 10.4  Tighten screws on brake disc cover plate -2-  .

      > Initial tightening 4 Nm (2.9 ftlb.)

      > Final tightening + 45 (33 ftlb.) °

      G15520813Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Brake disc cover plate
