Replacing Control Arm

WARNING: This page is about a different variant/trim than selected.
  1. Remove control arm -1-  from bracket -2-  .
    G15520746Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for control arm on bracket

    1. 1.1  Unscrew nut -3-  and counter at screw -4-  .
  2. Fit new control arm -1-  on bracket -2-  .

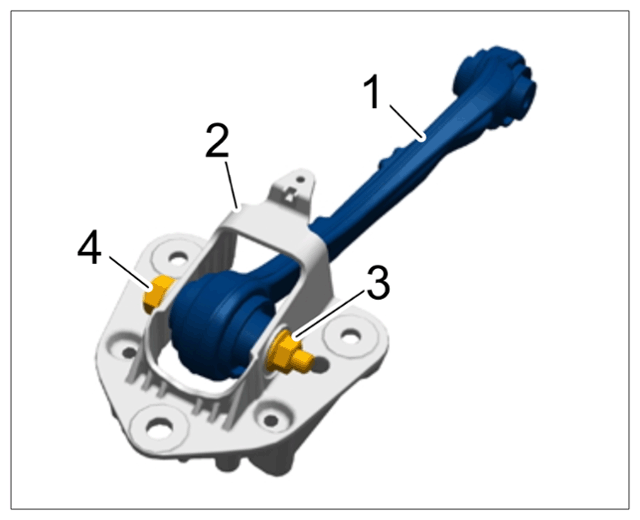

    G15520747Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for control arm on bracket

    1. 2.1  Insert screw -4-  and tighten nut -3-  . > Initial tightening 70 Nm (51.6 ftlb.)  > Final tightening + 180°
