Installing Strut
WARNING: This page is about a different variant/trim than selected.

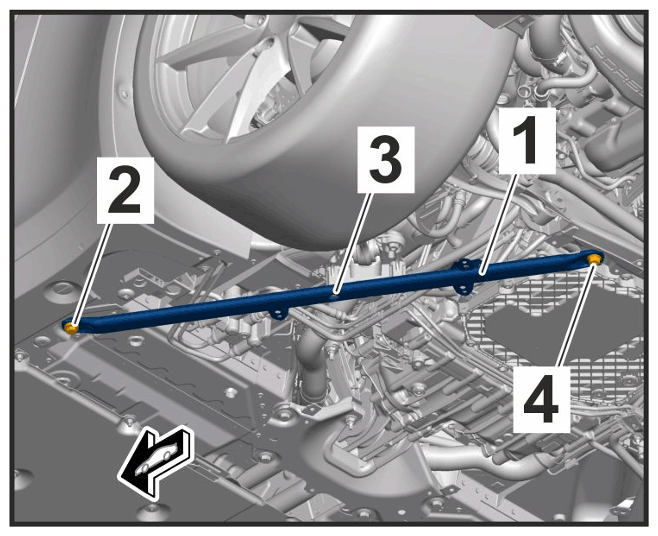

- Install strut -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Strut mounting
- 1.1
Tighten screw -2-
. > Initial tightening 70 Nm (51.6 ftlb.)
> Final tightening + 90°
- 1.2
Tighten screw -3-
. > Tightening torque 55 Nm (40.6 ftlb.)
- 1.3
Tighten screw -4-
. > Initial tightening 30 Nm (22.1 ftlb.)
> Final tightening + 90°
