Removing Tie Rod

WARNING: This page is about a different variant/trim than selected.

Release the parking brake
Change into neutral gear.
Remove the drive shaft -1- from the transmission flange.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for drive shaft on transmission flange
1. 3.1 Unscrew screws -2- and remove plates (turn the drive shaft in order to access the screws).
  Information

  Make sure that the drive shaft does not hang down as this may damage the joint.
2. 3.2 Suspend the drive shaft on rear-axle carrier side section.

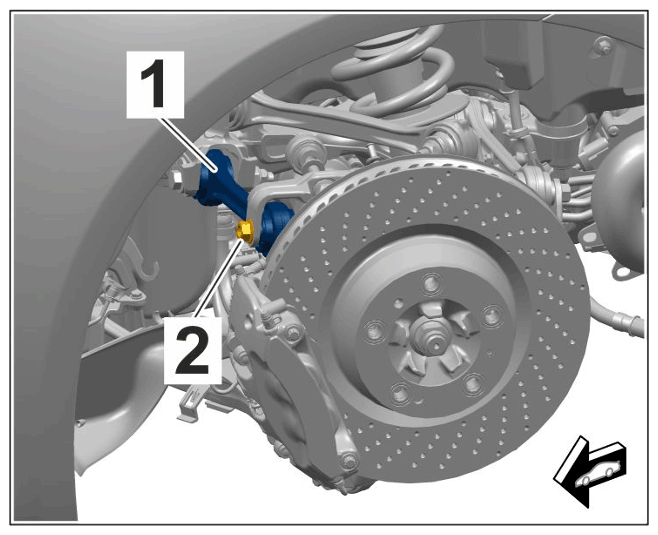

Remove tie rod -1- from the wheel bearing housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for tie rod on wheel bearing housing
1. 4.1 Unscrew screw -2- .

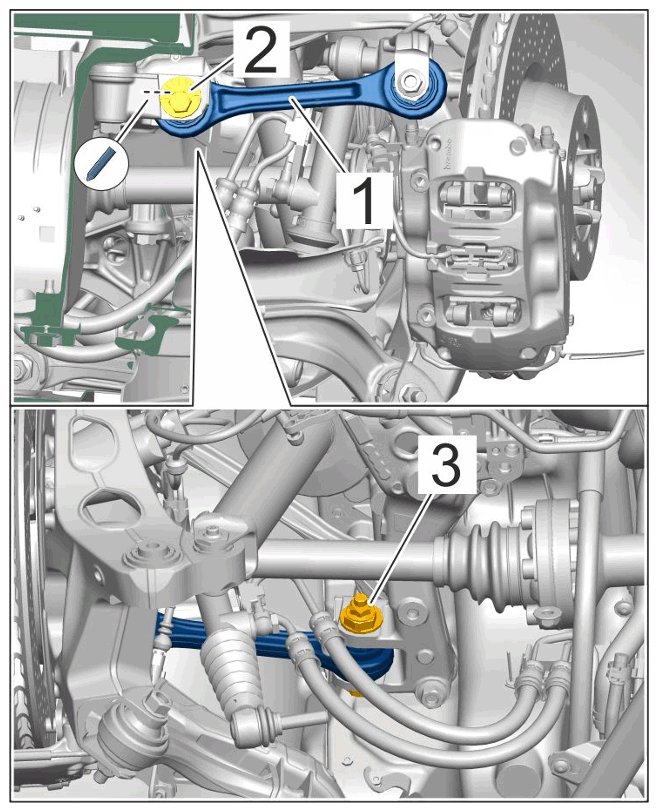

Loosen mounting for tie rod -1- on rear-axle carrier side section.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for tie rod on rear-axle carrier side section
1. 5.1 Mark eccentric position -2- for installation.
2. 5.2 Unscrew nut -3- . (Screw -2- remains screwed in).

Tilt the wheel suspension outwards at the top so that the eccentric screw can be removed.

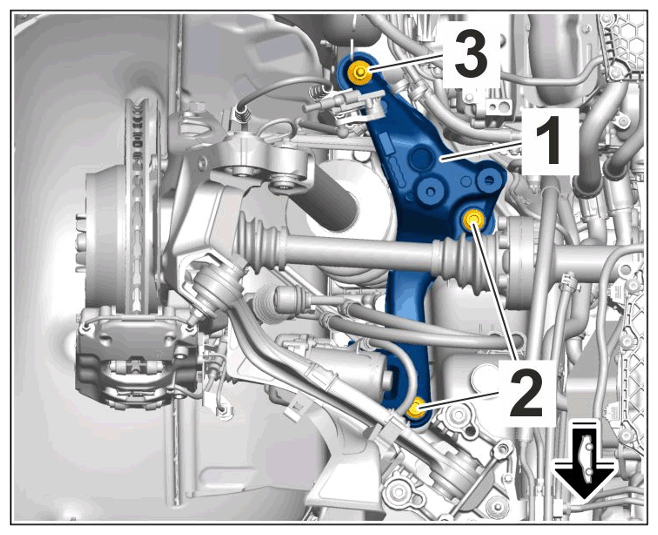

6.1 Unscrew screws -2- from the rear-axle carrier side section -1- .

6.2 Unscrew nut -3- from the rear-axle carrier side section -1- .

G15520648

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for rear-axle carrier side section

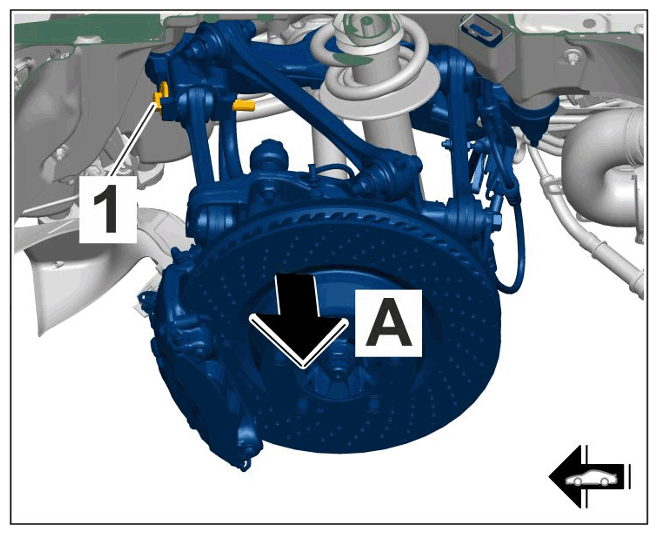

6.3 Carefully tilt the wheel suspension outwards as far as required at the top -arrow A- so that the eccentric screw -1- can be removed.

G15520649

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tilting wheel suspension outwards a. the top

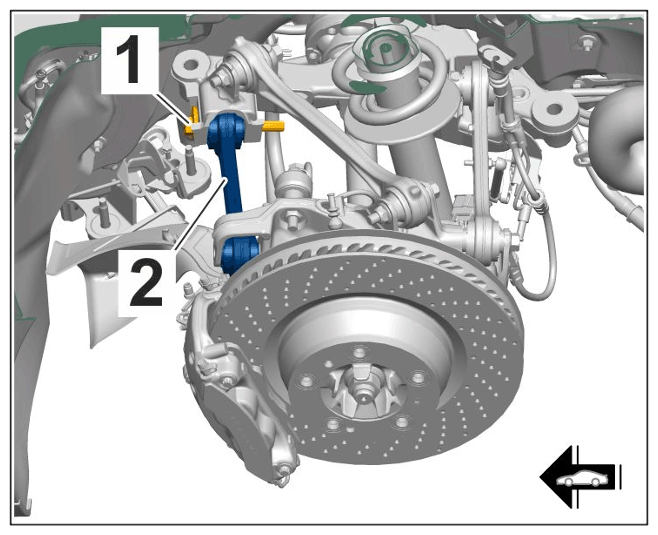

Remove tie rod -2- from the rear-axle carrier side section.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for tie rod on rear-axle carrier side section
1. 7.1 Remove eccentric screw -1- and tie rod -2- .
