Measuring Rear Brake Disc - Minimum Thickness
WARNING: This page is about a different variant/trim than selected.

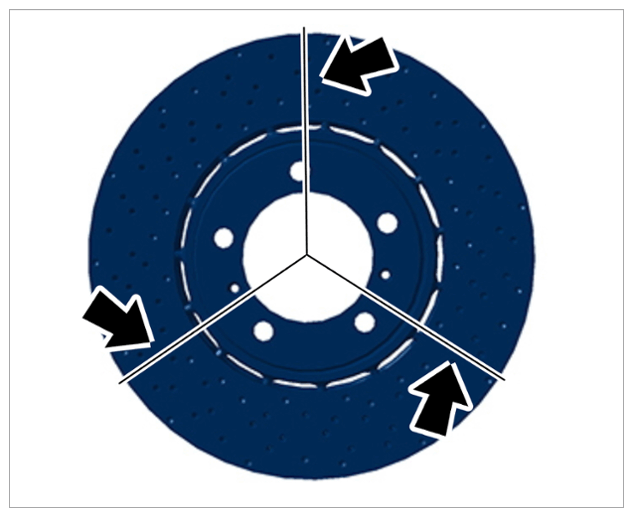

- Measure the brake disc using a suitable micrometer screw at atleast three different places, offset by 120° -Arrows-
.
Wear areas on brake disc friction surface
- If the measured value is below the wear limit at one or more measuring points:
Replace rear PDCC brake discs.
> WM, 461619 REMOVING AND INSTALLING PCCB BRAKE DISC AIR GUIDE (REAR)
| mm | |
| Brake disc thickness, rear: | > Dimension 32 mm |
| Maximum thickness tolerance of brake discs: | > Dimension 0.01 mm |
