Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Brake disc to wheel hub (front) | Item 2: Countersunk screw, M6 x 12/always replace screws following removal | Tightening torque | 5 Nm (3.7 ftlb.) | ||
|

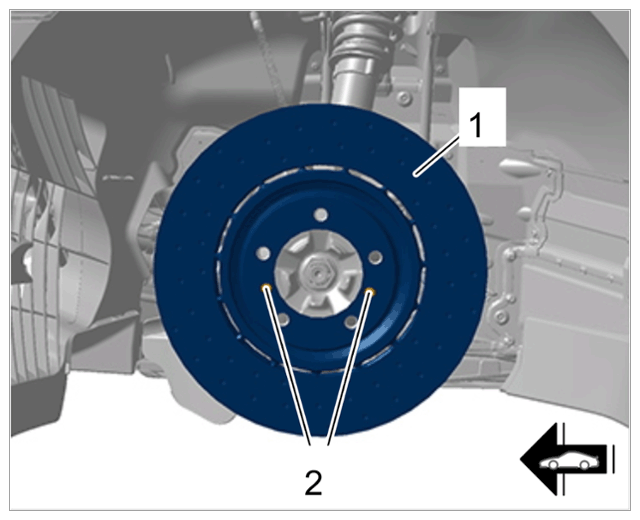

Brake disc front |
|||||
| Brake disc to wheel hub (wheel driver pin, central bolt, front and rear axle on Turbo vehicles) | Item 2: Replace cheese-head screws M6 x 30/screws and drivers after each removal | Tightening torque | 14 Nm (10.3 ftlb.) | ||
|

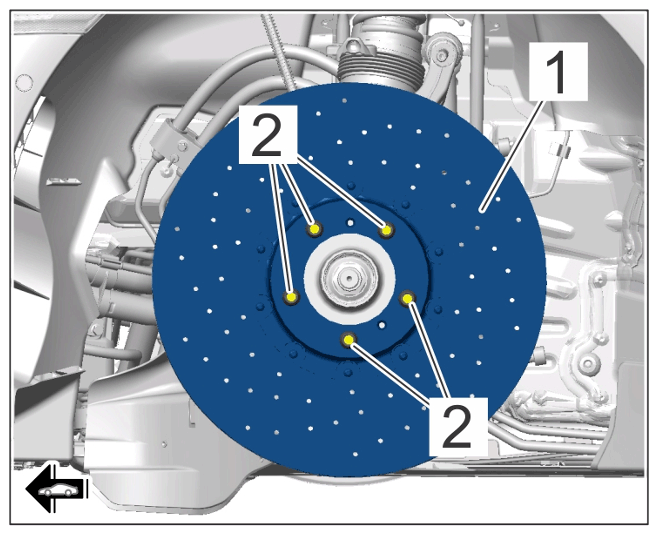

Wheel driver pin on PCCB brake disc |
|||||
