Measuring Front Brake Disc - Minimum Thickness
WARNING: This page is about a different variant/trim than selected.

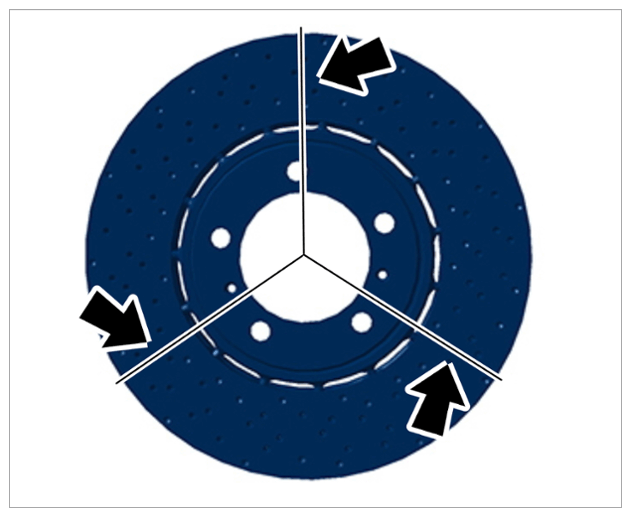

- Measure the brake disc using a suitable micrometer screw at atleast three different places, offset by 120° -Arrows-
.
Wear areas on brake disc friction surface
- If the measured value is below the wear limit at one or more measuring points:
Replace front PCCB brake disc.
> WM, 461619 REMOVING AND INSTALLING BRAKE DISC AIR GUIDE (FRONT)
| mm | |
| Front brake disc thickness: | > Dimension 40 mm |
| Maximum thickness tolerance of brake discs: | > Dimension 0.01 mm |
