Checking Front Disc Brake Pads

WARNING: This page is about a different variant/trim than selected.

Information

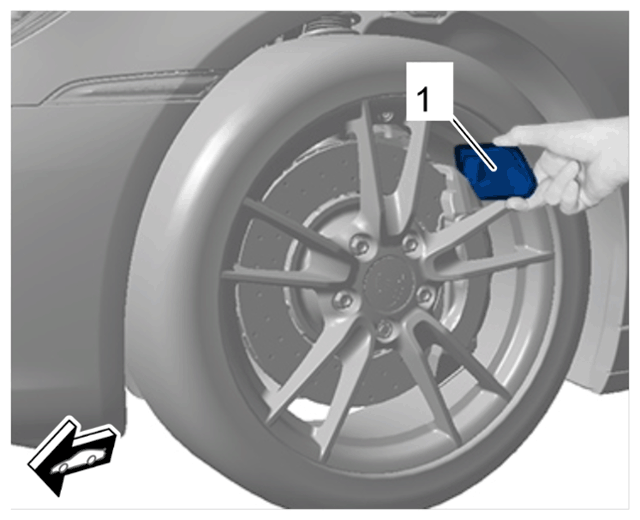

If the wheels are mounted, visually check the wear of the brake pads on the inside and outside using a mirror -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Checking brake pads (shown as an example)

Check front brake pads.
1. 1.1 Visually inspect pad thickness on the inside and outside of the brake pads for wear.
2. 1.2 Replace brake pads if necessary.
  > Replacing front disc brake pads
