Remove Spreader Device

Information

• From week 48/2021, only one spreader device/one actuator is installed on the rear left wheel bearing housing on all 992 vehicles with Porsche double-clutch transmission (PDK) apart from GT variants.
• There is only one spacer/dummy on the rear right wheel bearing housing that does not function.
• When replacing the right wheel bearing housing, the removal and installation of the spacer is identical to the previous component.

Information

• The spreader device (actuator) is fitted on the rear axle wheel bearing housing.
• If the spreader device (actuator) is to be re-used, secure it in the brake shoe mountings with a tie-wrap to prevent it from turning.
• The twist lock must not be removed until the brake shoes are installed.
• The brake shoe mountings must not be twisted.

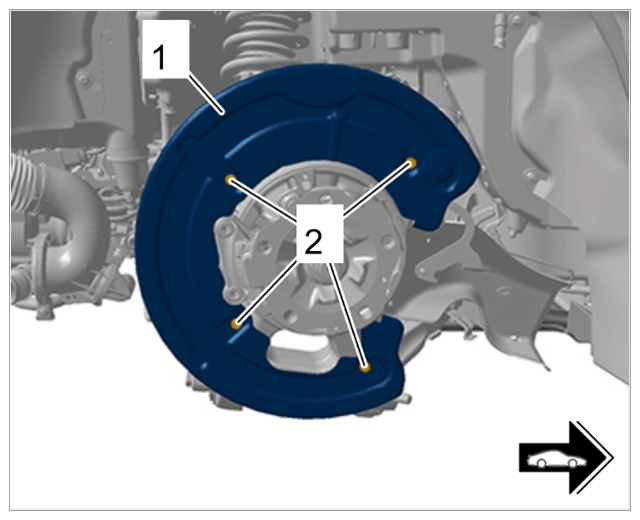

1. Remove brake disc cover plate -1-  (not required on GT3 vehicles).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Brake disc cover plate

   1. 1.1 Unscrew screws -2-  on cover plate.
   2. 1.2 Remove cover plate -1-  .

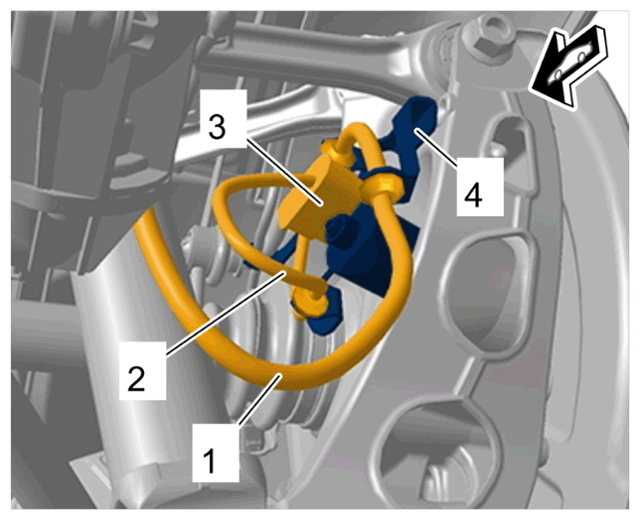

2. Disconnect electric lines for spreader device -1 and 2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric wire harness for spreader device

   1. 2.1 Release and disconnect cable plug on spreader device -3-  .
   2. 2.2 Unclip electric lines -1 and 2-  from the holder -4-  .

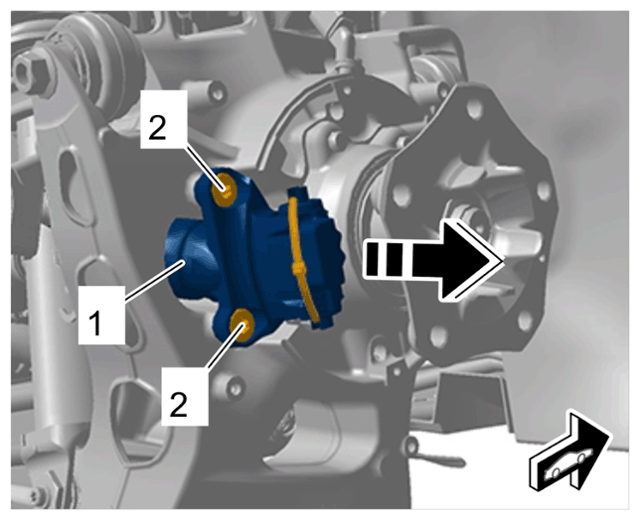

3. Remove spreader device -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spreader device

1. 3.1 Unscrew screws -2-  .
2. 3.2 Remove spreader device -1-  from the wheel bearing housing -Arrow-  .
