Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

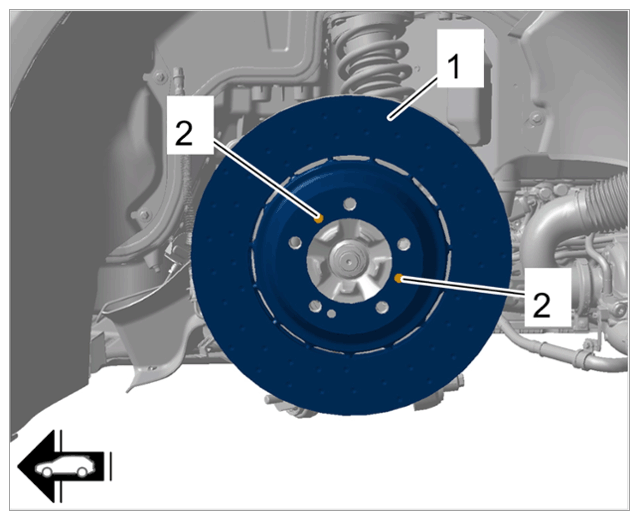

| Brake disc to wheel hub (rear) | Item 2: Counters unscrew, M6 x 12/always replace screws following removal | Tightening torque | 5 Nm (3.7 ftlb.) | ||
|
Brake disc rear |
|||||

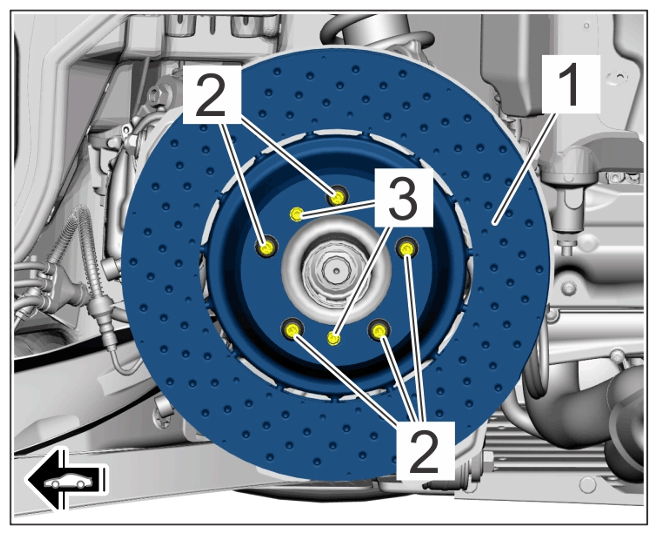

| Brake disc to wheel hub (wheel driver pin, central bolt, front and rear axle GT3) | Item 2: Cheese head bolt M8 x 32 | Tightening torque | 31 Nm (22.9 ftlb.) | ||
|
Brake disc GT3 |
|||||
