Removing Rear Brake Disc

WARNING: This page is about a different variant/trim than selected.

Move electric parking brake (EPB) into installation position.
1. 1.1 Connect PIWIS Tester to the vehicle; switch on PIWIS Tester .
2. 1.2 Switch on ignition.
3. 1.3 Start diagnostics.
4. 1.4 Select 'Porsche Stability Management (PSM)' control unit.
5. 1.5 Select 'Drive links/tests' tab.
6. 1.6 Select menu item 'Start brake pad change mode' ; press F12 to continue.
7. 1.7 Follow the instructions in the Tester.

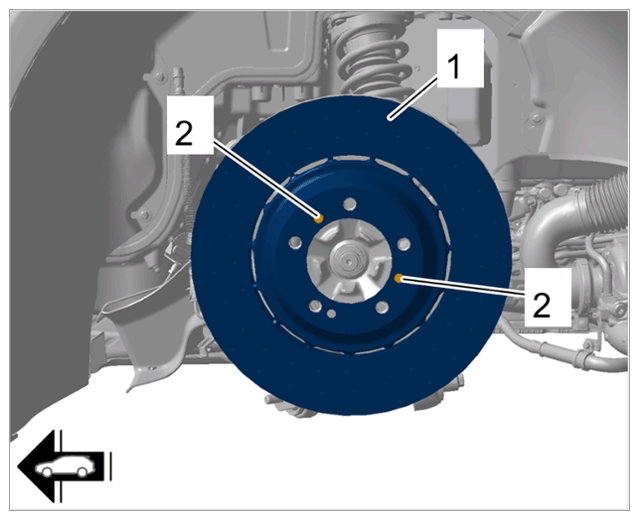

Wheels with wheel bolts: Remove brake disc -1- .
1. 2.1 Remove brake disc centering screws -2- .
2. 2.2 Replace brake disc centering screws -2- .
3. 2.3 Remove brake disc -1- from the wheel hub.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear brake disc

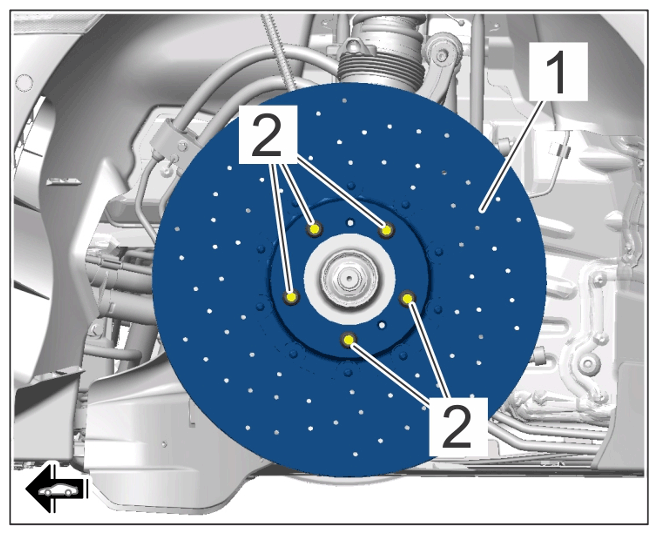

Wheels with centre lock (not GT3 vehicles): Remove brake disc -1- .
1. 3.1 Unscrew wheel driver -2- .
2. 3.2 Replace wheel driver -2- with screws.
3. 3.3 Remove brake disc -1- from the wheel hub.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake disc wheel driver

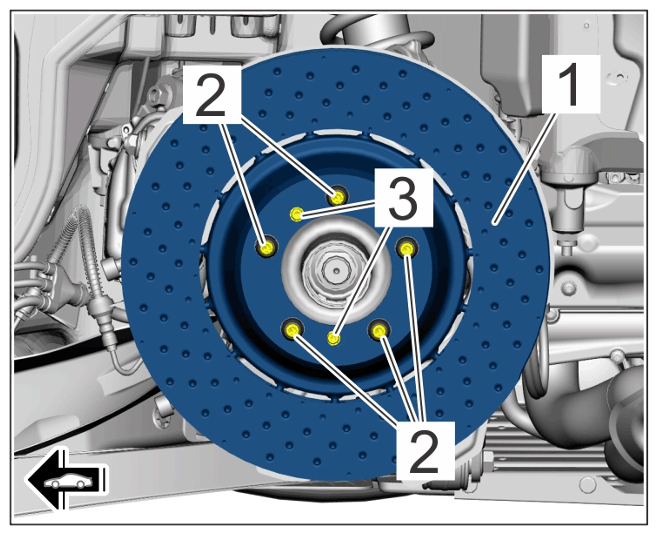

Wheels with centre lock GT3 vehicles: Remove brake disc -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake disc GT3
1. 4.1 Remove and replace brake disc centering screws -3- .
2. 4.2 Remove brake disc -1- from the wheel hub.
