Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Brake disc thickness, rear | Measured value | 28 mm | |||
| Thickness tolerance of brake discs, maximum | Measured value | 0.02 mm | |||
| Lateral runout of wheel hub, maximum | Measured value | 0.03 mm | |||
| Lateral runout of brake disc when installed, maximum | Measured value | 0.06 mm | |||
| Wheel to wheel hub | Wheel bolts | Tightening torque | 160 Nm (118 ftlb.) | ||
|

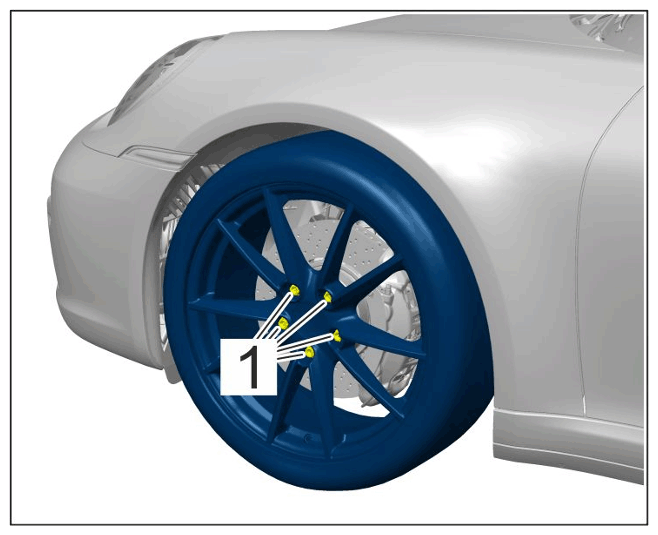

Wheel (front shown as example) |
|||||
