Measuring Front Brake Disc - Minimum Thickness
WARNING: This page is about a different variant/trim than selected.

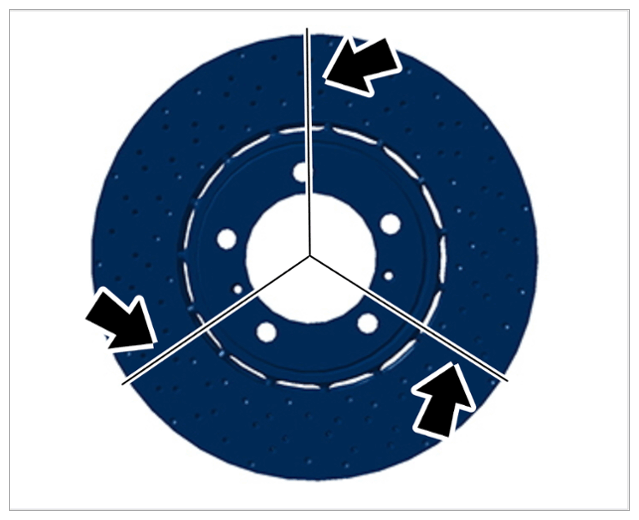

- Measure the brake disc using a suitable micrometer screw at at least three different places, offset by 120° -Arrows-
.
Wear areas on brake disc friction surface
- If the measured value is below the wear limit at one or more measuring points:
Replace brake disc.
465019 REMOVING AND INSTALLING FRONT BRAKE DISC
mm
| Front brake disc thickness: | > Measured value 34 mm |
| Maximum thickness tolerance of brake discs: | > Measured value 0.02 mm |
