Removing Brake Disc Air Guide (Rear)

WARNING: This page is about a different variant/trim than selected.
  1. Remove brake disc air guide -1-  .
    G15521110Courtesy of PORSCHE CARS NORTH AMERICA, INC.

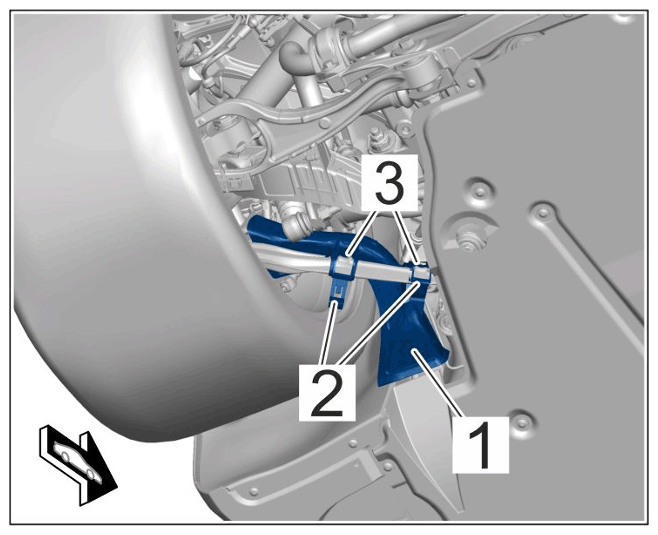

    Mounting for brake disc air guide

    1. 1.1 Loosen clips -2-  .
